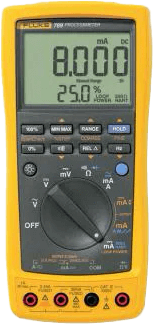

Fluke 789 ProcessMeter™
Brand: Fluke CorporationThe Fluke 789 ProcessMeter is the ultimate troubleshooting tool for electricians and instrumentation professionals.
It combines the functionality of a full-featured loop calibrator with the power of a CAT III 1000 V, CAT IV 600 V safety rated digital multimeter, and the wireless capabilities of Fluke Connect connectivity with optional IR3000FC module.
The 789 has a large, dual display with two levels of backlighting and externally accessible fuse and batteries for easy replacement. And its built-in, selectable 250-ohm HART® resistor eliminates the need to carry a separate resistor.
The 789 also has a built-in 24-Volt loop supply, which reduces the need to carry a separate power supply when doing offline transmitter testing.
You can also add the wireless data logging capabilities of the Fluke Connect™ mobile app to log data wirelessly to your smart phone and review it from a remote location.
The 789 provides all standard DMM capabilities including frequency measurement to 20 kHz, Min/Max/Average/Hold/Relative modes, and diode test and continuity beeper.
Combine that with the ability to troubleshoot every part of the loop.
Measure, source, simulate 4-20 mA signals, measure resistance, measure power, provide power to the loop and provide 250-ohm resistance to the loop.
The 789 includes SpanCheck; 0% and 100% buttons to toggle between 4 and 20 mA sourcing, while the display can simultaneously show mA and % of scale readings for faster troubleshooting.
It also delivers 1200-ohm drive capability on mA source.
Features- Compact digital multimeter and mA loop calibrator solution
- Full-featured mA loop calibrator with built-in 24v Loop Power
- Quickly and easily troubleshoot every part of a control loop
- Large, bright dual-measurement display
Specifications
Brand
Current Measurement Range
- 0-1 A AC or DC
- 0-30 mA
Current Measurement Resolution
- 1 mA
Current Measurement Accuracy
- 0.2 % + 2 LSD
Frequency
- To 19.999 kHz, 0.005 % + 1 LSD
Continuity
- Beeps for resistance < 100 Ω
Voltage Measurement Range
- 0-1000 Vac (true-Rms) or DC
Voltage Measurement Resolution
- 0.1 mV to 1.0 V
Voltage Measurement Accuracy
- 0.1 % of Reading + 1 LSD (Vdc)
Resistance Measurement
- To 40 MΩ, 0.2 % + 1 LSD
Operating Temperature
- -20° C to 55° C
Electrical Safety
- Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No 1010.1-92
