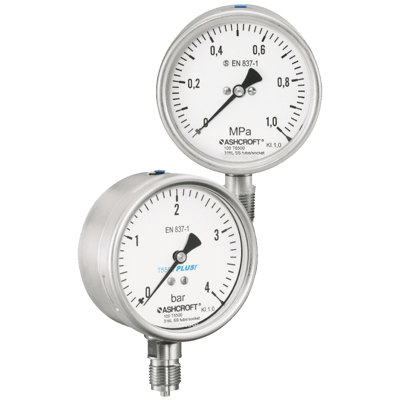

Ashcroft All-welded Stainless Steel Process Pressure Gauge, T5500/T6500
Images are representations only.

T5500/T6500 All-Welded Stainless Steel Process

Brand: Ashcroft Inc
Favorite
Does not ship to OH, United States

The Ashcroft ® T5500 and T6500 all stainless steel process pressure gauge is one of the finest production gauges on the market for industrial use where precise indications are required.

Industries served include chemical, petrochemical, power, machine, pulp, paper, food and beverage applications.

The product line offers either open or solid front design depending on your safety requirements.

These gauges are available with 100 or 160mm case sizes, stainless steel or Monel wetted systems and psi or metric pressure ranges
Features
  • PLUS!™ Performance dampens vibration, shock and pulsation effects
  • Rugged all welded stainless steel design
  • Overload protection to 400% of range (XRA option)
  • Low ambient temperature option for arctic conditions from -94°F (-70°C) for T6500 100mm only
  • Optional ATEX approved II 2 GD c

View Details

Specifications

Brand

Pressure Type

  • Compound Pressure
  • Gauge
  • Vacuum

Accuracy

  • 0.5 % of Full Scale
  • Standard Class 1: 1 % of Full Scale

Enclosure, Body Material

  • 304 Stainless Steel
  • 316 Stainless Steel
  • 316L Stainless Steel

BSP Connection

  • G 1/2” Male
  • G 1/4” Male

Mounting

  • Flush
  • Stem
  • Surface

Environmental Protection

  • IP66
  • NEMA 4X
  • Weatherproof

Materials of Construction

  • Bourdon Tube & Socket: 316L Stainless Steel
  • Dial: Aluminum, White Background, Black Figures & Intervals
  • Socket: Monel

NPT Connection

  • 1/2” NPT Male
  • 1/4” NPT Male

Name Plate, Tag Material

  • Stainless Steel

Process Temperature

  • Dry: Max.
  • Liquid Filled: Max.

Electrical Protection

  • Overload Protection

Fill Material

  • Glycerin
  • Halocarbon
  • Silicone

Size

  • Dial: 3.9” (100 mm)
  • Dial: 6” (160 mm)

Approvals & Certifications

  • ATEX
  • CE
  • CRN

Lens

  • Acrylic Lens
  • Glass Lens
  • Laminated Safety Glass
  • Shatterproof Glass

Movement

  • 303 Stainless Steel
  • 304 Stainless Steel
  • 316 Stainless Steel

Pressure Range

  • bar: 0 to 1,034
  • Inches Hg: -30 to 0
  • kPa: 0 to 103,400
  • psi: 0 to 15,000

Ambient Temperature Range

  • -40° to 93° C (-40° to 200° F)

Ring Material

  • 304 Stainless Steel
  • 316 Stainless Steel

  • Chemical & Petrochemical Plants Offshore Oil Rigs
  • Food & Beverage
  • Machine Equipment
  • OEM Equipment
  • Power
  • Pulp & Paper

Documentation

Data Sheets
