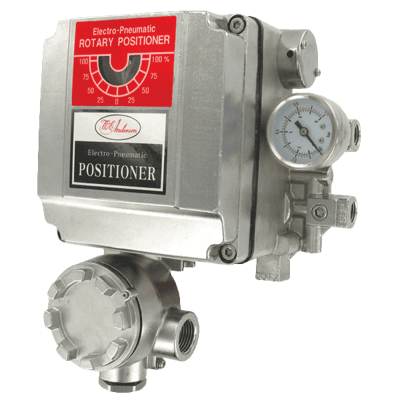

Series 265 PRECISOR II Pneumatic and Electro-Pneumatic Positioner

Brand: Dwyer Instruments, LLC

Proximity Series 265 PRECISOR II Pneumatic and Electro-Pneumatic Positioners combine outstanding performance with an extremely low price, making it an exceptional value for industrial applications.

Rotary valves with single or double acting pneumatic actuators can be precisely controlled, such as our ball and butterfly valves.

The Precisor II positioner proportionally modulates the valve from either an electric 4 to 20 mA or pneumatic 3 to 15 psig input signal, based on the model chosen and is user-selectable for single or double action.

Its rugged, durable design makes it ideal for use in harsh environments, while maintaining precise, accurate positioning of the control elements.

Includes a bracket for mounting onto actuators with NAMUR standard connections, and features a versatile linear cam for direct action, reverse action, or split ranges.
Features
  • Field selectable cam for direct or reverse acting
  • User selectable for single or double action
  • Highly visible indicator for local indication
  • IP66 enclosure rating

Specifications

Air Consumption

  • 0.10 to 28 scfm (3 to 80 LPM) at psig: 20 (kPa: 140, bar: 1.4) - Flow Capacity

Approvals & Certifications

  • CE

Conduit Connection

  • 1/2” NPT

Electrical Connectors

  • Screw Terminal

Enclosure, Body Material

  • 316 Stainless Steel
  • Aluminum Die Cast

Environmental Protection

  • IP66

Hysteresis

  • 1 % of Full Scale

Input

  • NAMUR - Lever

Input Impedance

  • 250 ± 15 ohms

Input Signal

  • 0 to 90° - Stroke
  • 4-20 mA DC - Electro-Pneumatic
  • psig: 3 to 15 (kPa: 20.7 to 103.4, bar: 0.20 to 1.034) - Pneumatic

Linearization

  • ± 2 % of Full Scale

Mounting

  • Bracket

NPT Connection

  • 1/4” NPT Female - Air Connection
  • 1/8” NPT Female - Gage Connection

Repeatability

  • ± 0.5 % of Full Scale

Sensitivity

  • ± 0.5 %

Supply Pressure

  • psi: 20 to 100 (kPa: 140 to 700, bar: 1.4 to 7) - Air Supply

Temperature Range

  • -20° to 70° C (-4° to 158° F)

  • Rotary Valves with Single or Double Acting Pneumatic Actuators
