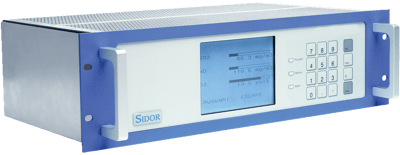

SIDOR Extractive Gas Analyzer
Brand: Sick AGThe SIDOR is a gas analyzer for measurement of up to 2 infrared components.
Additionally oxygen can be measured by integration of an electrochemical or paramagnetic measuring cell.
A significant characteristic is a half-yearly maintenance interval with test gases.
The stability of the measuring cells allows an adjustment with only inert gas or ambient air within this half-year period.
Sample gas pressure compensation is included as a standard.
The SIDOR was type approved for large combustion plants and crematories.
Features- Automated readjustment, self-monitoring, and fault diagnosis
- Test gas only needs to be checked every 6 months
- Long maintenance intervals
- TÜV suitability testing and MCERTS certification according to EN 15267
- Can be repaired on-site in many cases
- Replacement of components without complicated factory temperature calibration
Specifications
Brand
Certifications & Approvals
- MECERTS
- CE
- TÜV
- cCSAus
Enclosure Rating
- IP20
Gas Flow Rate
- 30 to 60 L/h
Sample Gas Temperature
- 0° to 45° C
Process Pressure
- -200 to 300 hPa
Ambient Temperature
- 5° to 45° C
Storage Temperature
- -20° to 70° C
Humidity
- Ambient: ≤ 95 % Relative Humidity, Non-Condensing
Communication
- Modbus
- RTU RS-232
Power Supply
- Power Consumption: ≤ 150 VA
- 48 to 62 Hz
- 100 Vac, -15 % / +10 %
- 115 Vac, -15 % / +10 %
- 230 Vac, -15 % / +10 %
Measuring Range
- CO₂: 0 to 500 ppm / 0 to 100 Vol. %
- NO: 0 to 93 ppm / 0 to 3 Vol. %
- N₂O: 0 to 100 ppm / 0 to 100 Vol. %
- SO₂: 0 to 35 ppm / 0 to 3 Vol. %
- O₂: 0 to 10 Vol. % / 0 to 25 Vol. %
- O₂: 0 to 3 Vol. % / 0 to 100 Vol. %
- CO: 0 to 60 ppm / 0 to 100 Vol. %
- CH₄: 0 to 5,000 ppm / 0 to 100 Vol. %
Response Time
- 3 s
- 4 s
- 30 s
Materials of Construction
- Viton B
- PVDF
- Glass
- Stainless Steel 1.4571
- Platinum
- Nickel
- Aluminum
