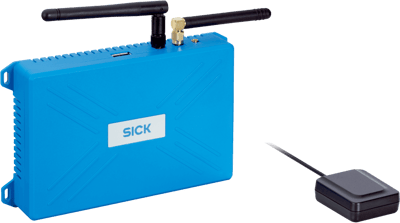

Telematic Data Collector Gateway System
Brand: Sick AGThe Telematic Data Collector (TDC) networks sensors, machines, systems and vehicles using IIoT platforms.
The data are transmitted wirelessly via mobile, radio communication or fixed-line connections.
They can also be analyzed and evaluated locally (edge computing). It is also possible to set up user-defined real-time alarms (e.g., SMS notifications) via a variety of interfaces based on relevant data.
The TDC brings together all the information along the value adding chain, thereby providing the ideal basis for wide-ranging analysis of that information and for deriving useful measures to increase productivity and efficiency.
Features- Simple, fast, cost effective and beneficial utilization of data
- Maximum availability of sensors and machines through real-time monitoring with user-defined alarms
- Broad range of applications thanks to the many connection and communication options available
- Future-proofed thanks to the use of open standards
Specifications
Brand
Certifications & Approvals
- CE
Task
- Condition Monitoring / Stock Monitoring / Outdoor Location Finding / User-defined Real-time Alarms
Sensors
- Thermometers
- Magnetometer
- Acceleration Sensor
Internal Computer
- 1GB, DD3, Dual-Core Cortex-A7 with Cortex-M4 Co-processor / 180 MHz ARM Cortex-M4 Internal Memory 16 GB / 32 MB, 256 kB SRAM
Operating System
- Linux
- FreeRTOS
- Linux4Microservices, Based on Linux Yocto Project 3.1.4 (Dunfell)
Connectivity
- Mobile Communication (2G, 3G, 4G)
- LAN
- WPAN
- WLAN
Alarm Output
- Push Message / Push Notification or User-defined Action
Operating Temperature
- -20° to 70° C
Storage Temperature
- -40° to 85° C
Interface
- Moderm
- GPS
- Ethernet
- CAN Bus
- Serial
- USB
