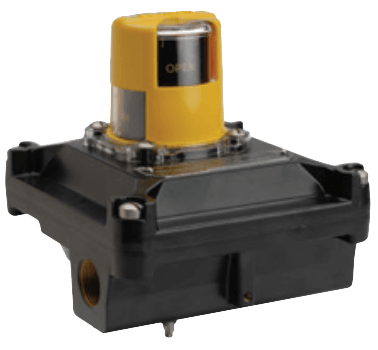

Accutrak 2007 Rotary Position Monitor
Brand: WestlockFully integrated and encapsulated rotary valve position monitors that are certified for use in explosive atmospheres.
Features- Touch set cams are hand adjustable, spring loaded and self-locking providing quick calibration of position switches and sensors
- Terminal strips are pre-wired and numbered with generous working space for ease of use
- Strong durable Beacon offers 360° visual indication in a choice of styles and colors
- Additional conduit for easy field wiring and mounting accessories as standard
- Standardized mounting pattern for easy adaptation to common bracketry
- NAMUR shaft output compliant to VDI/VDE 3845 available
- Analog position transmitter option
- Eliminator option for easy integration of external solenoid valve
- Aluminum enclosures with ultra-low copper content (0.2% maximum) ensure robust performance in corrosive environments
- Rugged stainless steel enclosures
Specifications
Brand
Approvals & Certifications
- NAMUR VDI/VDE 3845
- NEC 500 Class I, Div. 1, Groups C, D, T6 Ta = 60° C, Class II, Div. 1, Groups E, F, G, T6 Ta = 60° C
Bushing Material
- Oil Impregnated Bronze
Conduit Connection
- 1/2” NPT Male
- 3/4” NPT Female
Current
- 4-20 mA Position Transmitter
Enclosure Finish
- Aluminum with Powder Coat Finish
Enclosure, Body Material
- Aluminum
- Stainless Steel
Environmental Protection
- IP66
- NEMA 4
- NEMA 4X
Materials of Construction
- Beacon Visual Indicator: Co-Polyester
- Hardware: Stainless Steel
Shaft Material
- Stainless Steel
Switch Type
- DPDT (Form CC) Mechanical Switches / GO Switches
- V3 Mechanical Switches, SPDT / GO Switches
