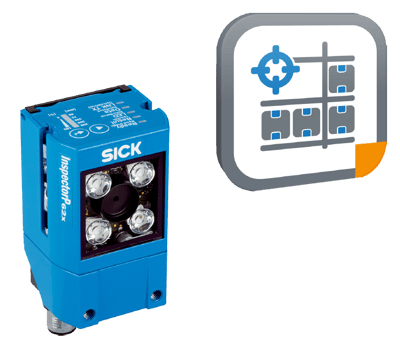

InspectorP Rack Fine Positioning 2D Machine Vision

Brand: Sick AG

The InspectorP Rack Fine Positioning is an easy-to-use yet flexible vision sensor that guides fine positioning of stacker cranes, or other automated storage and retrieval systems, in X and Y. The large measurement range allows for double-deep racking using the same sensor for both near and far range. Racks are reliably located using drilled holes only or reflectors, even with challenges such as stains or reflections.

InspectorP Rack Fine Positioning offers plug-and-play simplicity out of the box by including pre-assembled illumination, pre-focused optics and pre-installed software.

At a glance
  • Single- and double-depth rack storage using one device
  • User-friendly web interface
  • PROFINET and digital output
  • Rugged metal housing including IP67 protective hood
  • LEDs, laser alignment aid, on-device buttons and optional microSD memory card
  • Pre-assembled, pre-focused and pre-configured
  • Access to image data
Features
  • Save rack space to maximize storage capacity with high-precision positioning
  • Handle near and far range in double-deep racking with only one sensor
  • Compact, pre-configured, stand-alone device for easy mechanical integration without hardware adjustments
  • Flexible system integration through multiple connectivity options
  • Little to no training needed thanks to smart hardware features and simple web GUI
  • Allows using only holes for positioning, even with challenges such as stains or reflections
  • Image monitoring and logging of hard-to-reach places

Specifications

Brand

Certifications & Approvals

  • CE
  • EAC

Enclosure Rating

  • IP67

Sensor

  • CMOS Matrix Sensor, Grayscale Values

Sensor Resolution

  • 1,280 x 1,024 pixels (1.3 Mpixel)

Light Source

  • Internal Lighting LED, Visible, White, 6,000 K, ± 500 K
  • Adjustment Aid Laser, Visible, Red, 630 to 680 nm

Optical Focus

  • Fixed Focus

Optical Format

  • 1/1.8"

Operator Interface

  • Web-Interface

Control Element

  • 2 Buttons

Communication Interface

  • Ethernet, TCP/IP, FTP, HTTP
  • PROFINET

Configuration Software

  • Web-Interface, PLC Interface

Dimensions

  • 108 mm x 63 mm x 59 mm

  • Fine positioning of stacker crane, or other automated storage and retrieval systems, in high-bay storage
  • Double-deep or single-deep storage
  • Stacking of pallets, boxes and totes in racks
  • Retrofitting SICK DMP-2- and 3 installations
  • Automatic parking garages
