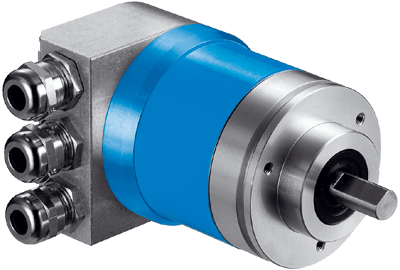

ATM60 Absolute Encoder

The ATM60 absolute multiturn encoder from SICK reliably delivers position information with a resolution of up to 26 bits, even under harsh ambient conditions.

This product family proven in the field is based on a magnetic measurement principle.

The 13 bit single-turn area is scanned by a sensor by means of permanent magnetic elements.

The 13 bit multiturn area consists of a magnetic reduction gear.

Equipped with the zero set pushbutton, the encoder can be conveniently set to zero or a user-programmed value on site.

With magnetic scanning, its rugged housing in accordance with enclosure rating IP67 and high shock and vibration resistance, the ATM60 SSI is ideal for use under harsh condition.

Features

Reduction in variants due to one encoder for all resolutions, single- and multiturn freely programmable
Variable thanks to various electrical connection options
Maintenance-free encoder, long service life
A base model with flexible application possibilities thanks to the easily exchangeable collets for the blind hollow shaft
Fast commissioning thanks to zero-set/preset function at the touch of a button on the device or with software
Reliable applications thanks to high permissible shock and vibration values
Worldwide availability and service

Specifications

Brand

Sick AG

Certifications & Approvals

CE
cULus

Encoder Design

Multiturn

Shaft Type

Blind Hollow Shaft
Solid Shaft, Face Mount Flange
Solid Shaft, Servo Flange

Shaft Diameter

6 mm
10 mm
15 mm

Connection Type

Connection Adapter for DeviceNet
Connection Adapter for PROFIBUS
Connection Adapter for CANopen
Cable, 12-Wire, Radial
Male Connector, M23, 12-Pin, Radial
