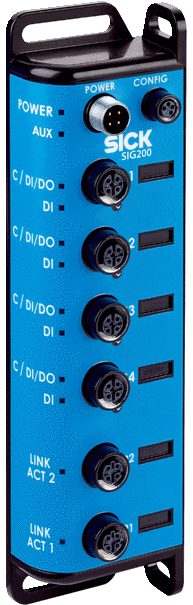

SIG200 Sensor Integration Gateway
Brand: Sick AGThe SIG200 Sensor Integration Gateway is an IO-Link master for integrating IO-Link devices into common PLC environments and enterprise level systems. With the SIG200, digital inputs, digital outputs or IO-Link signals of several devices can be detected, combined, evaluated and transmitted via various fieldbus protocols.
A second data channel is also available for higher-level processing via a REST-API. Parameterization is done via a web server or the SOPAS ET configuration software from SICK. Among other things, SOPAS ET contains a powerful logic editor.
It creates unique logic combinations for the respective application - regardless of the programmable logic controller.
Features- The IO-Link master technology enables seamless integration and data transparency from the sensor to the PLC systems
- Economical entry into IO-Link technology
- Intuitive parameterization and setup with access to all parameters of IO-Link devices thanks to the simple download of IODD files
- Pre-process data directly where it is created
- INDUSTRY 4.0 READY - access to sensor data from the company level
Specifications
Brand
Certifications & Approvals
- CE
- cULus Listed
Enclosure Rating
- IP67
Supported Product
- IO-Link Devices
- Binary Actuators
- Binary Switching Sensors
Communication Interface
- USB
- Ethernet
- EtherNet/IP
- REST API
- PROFINET
Input/Output
- S1-S4 4 configurable Ports Pin4 can be used in one of the available Port modes: IO-Link, Digital Input or Digital output. an additional Digital Input signal can be connected using Pin²
- LINK/ACT 1 & 2 Two Ethernet Ports are provided for the network Connection
- CONFIG Port for configuration via USB with SOPAS ET (SOPAS ET can be downloaded for free from www.sick.com)
