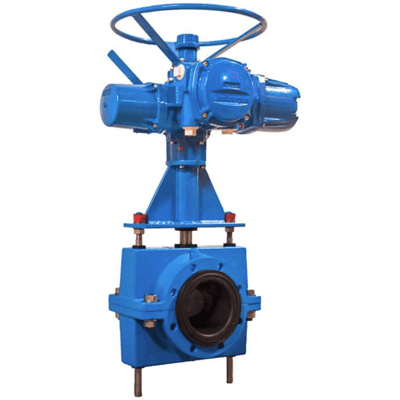

Electric Pinch Valve
Brand: RF Valves, IncOur patented pinch valve design uses elastomer tube folds to prevent stretching and extend the life of your valve.
Features
- Configurable with most electric multi-turn actuators on the market
- Exterior as well as interior corrosion resistant Fusion Bonded Epoxy Powdercoating
- In-line and quick tube change with patented tube folds for durability & self-cleaning
- Standard Face-to-Face
Specifications
Brand
Size Range
- 1" to 60" (25 to 1,500 mm)
Body Material
- Ductile Iron (CRN available)
- Aluminum
Temperature Range
- -50° to 250° F
Max. Working Pressure
- Up to 300 psi (20 bar)
Standard Face-to-Face
- ASME B-16.10, DIN 3202, ISO 5732
Flange Drilling
- ANSI 150#, ANSI 300#, DIN, JIS, AS
Actuation
- Electric Actuator with or without Manual Handwheel Override (120 V, 240 V, 360 V, or 480 V)
Elastomer Qualities
- NR, PGR, EPDM, NBR, IIR, CR, FPM, CSM
In-Line Tube Change
- Yes
Approvals & Certifications
- CRN - Canadian Registration Number
- ISO 5732
Body Type
- Enclosed or Sealed
