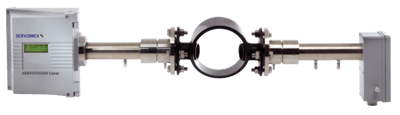

SERVOTOUGH LaserSP 2930 Tunable Diode Laser (TDL) Emission & Process Analyzer
Brand: SERVOMEXUtilizing the latest developments in Tunable Diode Laser (TDL) Technology, the LaserSP is a versatile cross-stack monitor capable of making fast and accurate gas measurements in hazardous environments.
Able to detect a variety of gases including O₂, HCl, HF, NH₃, CO, CO₂, H₂O, H₂S, HCN, NO, N₂O, CH₄ and other hydrocarbons, the LaserSP offers a fast response and highly stable performance, making it ideal for a wide range of emissions, process and combustion control applications.
With no moving parts and consumables, Servomex’s advanced TDL technology has minimal sample conditioning requirements, greatly reducing operational and maintenance costs.
Optimized for use in hot dirty or dangerous environments, the LaserSP features a robust design and easy installation. Allowing safe operation in situations where the process stream itself is flammable and has been classified as a Hazardous Area.
This device also requires minimal ongoing maintenance, helping to reduce operational costs considerably over product life.
Specifications
Brand
Approvals & Certifications
- ATEX Category 3 (Gases) & Category 2 (Dusts)
- CSA (C,US): Class1, Div. 2, Groups A, B, C, D
- IECEx Zone 2 & Zone21
Measuring Range
- Minimum Measuring Range: 0 to 5 %
- Minimum Measuring Range: 0 to 5,000 ppm
Operating Temperature
- -20° to 65° C (-4° to 149° F)
Power Supply
- 100-240 Vac, 50/60 Hz, 50 VA, Max.
- 20-30 Vdc, 25 W, Max.
