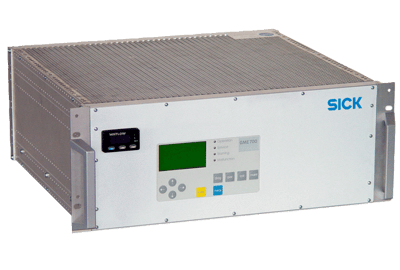

GME700 Extractive Gas Analyzer
Brand: Sick AGReliability and precision are the distinguishing features of the GME700 laser gas analyzer.
Based on the principle of TDLS (Tunable Diode Laser Spectroscopy) and by using specific light absorption, the GME700 is able to measure several gas components, such as NH3, HF, or HCl.
The compact 19" unit includes the analyzer and evaluation unit as well as a heated multipath measuring cell.
Features- Optimal adaptation to measuring task through suitable gas conditioner
- High reliability during operation
- Can also be used in harsh ambient conditions
- Easy integration into existing extractive systems
- No problematic test gases required
Specifications
Brand
Certifications & Approvals
- CE
Enclosure Rating
- IP20
Measuring Range
- HCl: 0 to 5 ppm / 0 to 3,000 ppm
- HF: 0 to 5 ppm / 0 to 2,000 ppm
- NH₃: 0 to 25 ppm / 0 to 4,000 ppm
- HCl / H₂O: 0 to 5 ppm / 0 to 3,000 ppm (HCl), 0 to 25 Vol. % / 0 to 100 Vol. % (H₂O)
- NH₃ / H₂O: 0 to 25 ppm / 0 to 4,000 ppm (NH₃) 0 to 3 Vol. % / 0 to 15 Vol. % (H₂O)
Measured Value
- HCl, HF, NH₃, H₂O
Response Time
- ≤ 360 s
Accuracy
- 2 % to 4 % of Measuring Range Full Scale
Sample Gas Temperature
- ≤ +120° C Temperature at Analyzer Inlet
Process Pressure
- 600 to 1,200 hPa
Ambient Temperature
- 0° to 50° C
Storage Temperature
- -40° to 55° C
Humidity
- Ambient: ≤ 85 % Non-Condensing
Communication Interface
- PROFIBUS DP
- RS-232
Power Supply
- 115 Vac / 230 Vac, 50 Hz / 60 Hz, Power Consumption ≤ 500 VA
