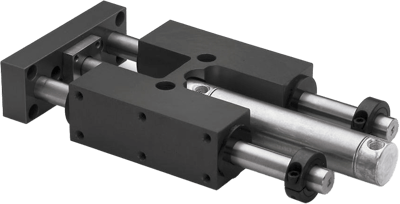

Numatics SH Series Linear Slide

Brand: ASCO
Request Information

The Numatics SH Series guided linear slide is a motion device capable of heavy loads and moderately long strokes. It is interchangeable with competitive heavy-duty slides. The SH Series is suitable for analytical and diagnostic instrument, automotive, bottling, and commercial kitchen and laundry equipment applications.
Features
  • Stainless steel cylinder body and rods for corrosion resistance.

  • Alignment coupler with 360 degrees of float eliminates cylinder side loading.

  • Hardened steel guide shafts with large diameters for increased load capability.

  • Precision bearings sealed with rod wipers are maintenance free and provide self-alignment, self-lubrication, and low friction.

  • End of stroke adjustment and sensing detection options are available.

    • Specifications

    Brand

    Bore

    • 1-1/2", 2", 2-1/2", 5/16", 9/16", 3/4", 1-1/16", 3"

    Operating Environment

    • Corrosive, Hazardous, Indoor, Outdoor, Washdown

    Stroke

    • 24", max.
