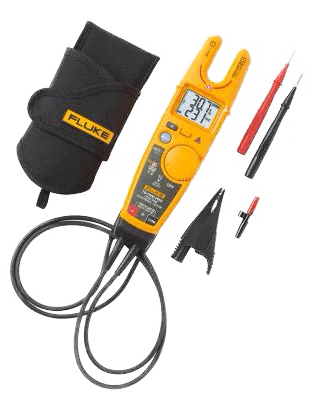

Fluke T6-1000 PRO Electrical Tester
Brand: Fluke CorporationThe T6-1000 PRO Electrical Tester measures voltage up to 1000 V ac and current up to 200 A ac, all through the open fork and without test lead contact to live voltage.
Connect the black lead to ground with the included heavy-duty alligator clip, slide the wire into the open fork and see both voltage and current at the same time.
On wires up to AWG 4/0 (120 mm2), carrying as much as 200 A and 1000 V ac.
Even with gloves on. It will change how you do your job.
Features- Save time by seeing voltage and current measurements at the same time
- Visual Continuity™ – the screen automatically turns green for continuity, perfect when it’s too loud to hear the beeper
- FieldSense™ technology for ac voltage, current and frequency, all without making electrical contact to live voltage
- HOLD button temporarily freezes the screen for easy viewing
- Easy to read display with backlight
- Accepts optional Fluke TPAK Magnetic Meter Hanger for convenient operation
Specifications
Brand
FieldSense AC Voltage
- Range: 1000 V
- Resolution: 1 V
- Accuracy: ± (3 % + 3 counts)
FieldSense AC Current
- Range: 200.0 A
- Resolution: 0.1 A
- Accuracy: ± (3 % + 3 counts)
FieldSense Frequency
- Range: 45 Hz - 66 Hz
- Resolution: 1 Hz
- Accuracy: ± (1 % + 2 counts)
Volts ac
- Range: 1000 V
- Resolution: 1 V
- Accuracy: ± (1.5 % + 2 counts)
Volts dc
- Range: 1000 V
- Resolution: 1 V
- Accuracy: ± (1 % + 2 counts)
Resistance
- Range 2000 Ω/ Resolution 1 Ω
- Range 20.00 kΩ/ Resolution 0.01 kΩ
- Range 100.0 kΩ/ Resolution 0.1 kΩ
- Accuracy: (all ranges) ± (1 % + 2 counts)
Operating Temperature
- -10° to +50° C
- 14° to 122° F
Safety
- IEC 61010-1: Pollution Degree 2
- IEC 61010-2-032: CAT IV 600 V / CAT III 1000 V
