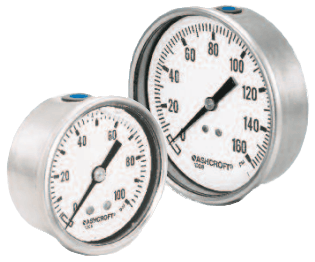

1008S/SL 63/100 mm Stainless Case Gauge

Brand: Ashcroft Inc
Does not ship to OH, United States

The Ashcroft® 40/50mm 1008S pressure gauge is a compact, all-stainless steel design for limited space installations requiring corrosion resistance.

This provides the user with an economical solution for harsh environment pressure measurement.
Features
  • ASME 3-2-3% grade B accuracy
  • True Zero pointer indication
  • RoHS compliant

Dial Size

Dial Size

Tube & Socket

Tube & Socket

Fill Material

Fill Material

Connection Size

Connection Size

Connection Location

Connection Location

Engineering Units

Engineering Units

Range

Range
Vacuum: 30 to 0
  • Vacuum: 30 to 0
  • Compound: -30 inches Hg / 15 psi
  • Compound: -30 inches Hg / 30 psi
  • Compound: -30 inches Hg / 60 psi
  • Compound: -30 inches Hg / 100 psi
  • Compound: -30 inches Hg / 150 psi
  • Compound: -30 inches Hg / 300 psi
  • psi: 15
  • psi: 20
  • psi: 30
  • psi: 60
  • psi: 100
  • psi: 120
  • psi: 160
  • psi: 200
  • psi: 300
  • psi: 400
  • psi: 500
  • psi: 600
  • psi: 800
  • psi: 1,000
  • psi: 1,500
  • psi: 2,000
  • psi: 3,000
  • psi: 4,000
  • psi: 5,000
  • psi: 6,000
  • psi: 8,000
  • psi: 10,000
  • psi: 15,000

Range

Range
bar: 1
  • Vacuum: -1 to 0 bar
  • Compound: -1 Inches Hg / 1 bar
  • Compound: -1 Inches Hg / 1.5 bar
  • Compound: -1 Inches Hg / 3 bar
  • Compound: -1 Inches Hg / 5 bar
  • Compound: -1 Inches Hg / 6 bar
  • Compound: -1 Inches Hg / 9 bar
  • Compound: -1 Inches Hg / 15 bar
  • Compound: -1 Inches Hg / 20 bar
  • Compound: -1 Inches Hg / 24 bar
  • bar: 1
  • bar: 1.6
  • bar: 2.5
  • bar: 4
  • bar: 6
  • bar: 10
  • bar: 16
  • bar: 25
  • bar: 40
  • bar: 60
  • bar: 100
  • bar: 160
  • bar: 250
  • bar: 400
  • bar: 600
  • bar: 1,000

Range

Range
1 kg/cm²
  • Vacuum: -1 to 0 inches Hg
  • Compound: -1 Inches Hg / 1 kg
  • Compound: -1 Inches Hg / 1.5 kg
  • Compound: -1 Inches Hg / 5 kg
  • Compound: -1 Inches Hg / 15 kg
  • Compound: -1 Inches Hg / 25 kg
  • 1 kg/cm²
  • 1.6 kg/cm²
  • 2.5 kg/cm²
  • 4 kg/cm²
  • 6 kg/cm²
  • 10 kg/cm²
  • 16 kg/cm²
  • 25 kg/cm²
  • 40 kg/cm²
  • 60 kg/cm²
  • 100 kg/cm²
  • 160 kg/cm²
  • 250 kg/cm²
  • 400 kg/cm²
  • 600 kg/cm²
  • 1,000 kg/cm²

Range

Range

Range

Range
Part Number / SKU

Does not ship to OH, United States

    Specifications

    Accuracy

    • ASME 3-2-3 % Grade B

    Ambient Temperature Range

    • Dry: -40° to 93.3° C (-40° to 200° F)
    • Glycerin Filled: -7° to 66° C (20° to 150° F)

    Approvals & Certifications

    • RoHS

    Enclosure, Body Material

    • 304 Stainless Steel

    Environmental Protection

    • IP54
    • IP65
    • IP66
    • NEMA 3
    • NEMA 4X

    Fill Material

    • Glycerin

    Lens

    • Polycarbonate Lens

    Materials of Construction

    • Bourdon Tube & Socket: 316 Stainless Steel
    • Dial (Black Figures on White Background), Pointer (Black): Aluminum

    Mounting

    • Flush Mount
    • Panel Mount
    • Stem Mount with U-Clamp or Front Flange

    Movement

    • Stainless Steel Gear Typical

    NPT Connection

    • 1/4" NPT Male

    Plug Material

    • Fill Plug: Buna-N Ventable Design

    Pressure Range

    • bar: 0 to 1,379
    • inHg: -100 to 0
    • kPa: 0 to 137,900
    • psi: 0 to 20,000

    Pressure Type

    • Compound Pressure
    • Gauge
    • Vacuum

    Ring Material

    • 304 Stainless Steel Crimped

    Seat / Seal Material

    • Socket O-Ring Seal: Buna-N

    Size

    • Dial: 2.5" (63 mm)
    • Dial: 3.5" (100 mm)

    • Food & Beverage
    • Hydraulics & Pneumatics
    • OEM Equipment
    • Pumps & Compressors
