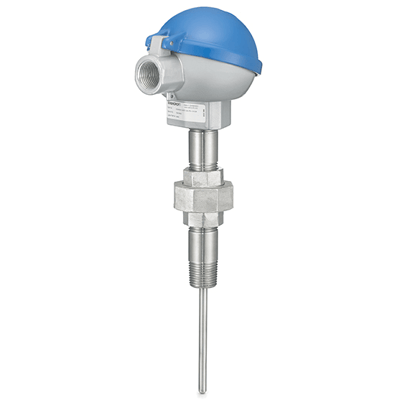

AT20 Thermocouple
Brand: Ashcroft IncDoes not ship to OH, United States
The Ashcroft AT20 temperature sensor assemblies provide accurate temperature measurements for applications that are located in hazardous environments.
Each temperature sensor assembly consists of a spring loaded temperature sensor, magnesium oxide, MgO, insulated insert, connection head and lag extension.
The assembly may also include an optional terminal block for wiring and/or transmitters.
Thermocouple assemblies are manufactured to either to IEC 60584-2 or ANSI MC 96.1 and RTDs assemblies are manufactured to IEC 60751.
Features- Designed to be used with ISA-ds 49 style thermowells
- Manufactured to 60584-2 or ANSI MC 96.1
Specifications
Brand
Accuracy
- Class 1, Typical J, K, T, E & N: ± 1.5° C (± 2.7° F) or ± 0.0040° C (± 0.0072° F)
- Class 2 Typical J, K, E, N, Class 3 Typical K, E, N: ± 2.5° C (± 4.5° F) or Absolute ± 0.0040° C (0.0072° F), ± 0.0075° C (± 0.0135° F), 0.0150° C (± 0.027° F)
- Standard Typical E: ± 1.7° C (± 3° F) or Absolute ± 0.0050° C (± 0.009° F)
- Standard Typical J, K, N: ± 2.2° C (± 3.96° F) or Absolute 0.0075° C (0.0135° F), ± 0.0040° C (± 0.0072° F)
- Standrad & Class 2 & Class 3 Typical T: ± 1° C (1.8° F) or Absolute ± 0.0075° C (± 0.0135° F), ± 0.0150° C (0.027° F)
Approvals & Certifications
- Calibration
- ATEX: Ex ia IIC T6 Gb (IEC 60079-1), Ex ia IIC T6 Ga (EC 60079-11)
- IECEx: Ex ia IIC T6 Ga (IEC 60079-1), (IEC 60079-11), 60584-2
Diameter
- Stem: 1/8 to 5/16" (3 to 8 mm)
Electrical Connectors
- Ceramic Terminal Block
Environmental Protection
- IP66
- IP67
- IP68
Gland Material
- Cable Gland: Nickel Plating Brass for Unarmored & Armored Cable
- Cable Gland: Polyamide PA, for Unarmored Cable
- Cable: Stainless Steel for Unarmored & Armored Cable
Lagging Extension
- 2 to 39" (0.05 to 1 m)
Materials of Construction
- Head: Aluminum Alloy
- Nipple (AISI), Head: 316 Stainless Steel
Mounting
- Head: 1/2" NPT Female
- Head: 3/4" NPT Female
- Head: M20 x 1.5
- Head: Pg 16
Name Plate, Tag Material
- Metal
NPT Connection
- 1/2" NPT Male
Process Connection Material
- AISI 316 Stainless Steel
Sensor, Probe Connection
- Thermocouple: 2-Wire
Sensor, Probe Type
- E Thermocouple -200° to 800° C (-328° to 1,472° F)
- J Thermocouple -40° to 750° C (-40° to 1,382° F)
- K Thermocouple -200° to 1,100° C (-328° to 2,012° F)
- N Thermocouple -200° to 1,100° C (-328° to 2,012° F)
Stem Length
- 2 to 3,937" (0.05 to 100 metres)
Stem Material
- AISI 316 Stainless Steel
- Inconel 600
- Chemical & Petrochemical
- HVAC/R
- Industrial Equipment Manufacture
- Industrial Ovens
- Oil & Gas Applications
- Petrochemical
- Power Generation Equipment
- Reactors
- Towers
