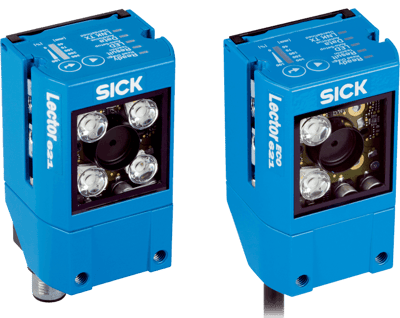

Lector62x Image-Based Code Reader
Brand: Sick AG
The Lector62x is a compact image-based code reader for the reliable detection of 1D, 2D, and stacked codes as well as plain text.
Its high-performance DPM decoder can read even lasered or dot-peened codes perfectly – even in the case of low contrast levels, contamination, or poor code quality.
Thanks to the powerful illumination concept with bi-color LEDs, the Lector62x is particularly immune to ambient light.
It ensures stable reading even in changing light conditions.
The compact housing with swivel connector makes it the ideal code reader for production lines where space is tight.
Features- Intelligent decoding algorithms for maximum reading performance and high throughput, even with highly reflective or contaminated codes
- Variable illumination concept ensures stable reading even in changing light conditions
- Maximum reliability on shiny or reflective surfaces thanks to flexible optical accessories
- Compact design and swivel connector for easy integration even if installation space is tight
- Automated setup wizard with auto focus and aiming laser makes commissioning faster and more cost-effective
- Short downtimes when devices are replaced thanks to parameter backup on MicroSD card
- Programming is quick and easy since read results can be transmitted to the control system in the desired format
Specifications
Brand
Certifications & Approvals
- CE
- EAC
Enclosure Rating
- IP65
- IP67
Sensor Resolution
- 1,280 x 1,024 pixels
- 752 x 480 pixels
Scanning Frequency
- 25 Hz / 60 Hz / 50 Hz
Reading Distance
- 30 to 1,500 mm
Communication
- Ethernet, TCP/IP
- USB
- PROFIBUS DP
- CANopen
- CAN
- EtherCAT
- Serial: RS-232, RS-422
- PROFINET
Weight
- 170 g
