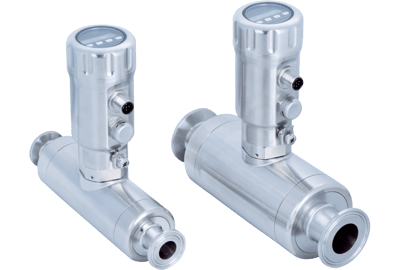

DOSIC® Flow Sensor
Brand: Sick AGThe non-contact DOSIC® flowmeter detects the flow volume of conductive and non-conductive liquids based on ultrasonic technology.
With its measurement channel and stainless-steel housing, the ultrasonic flowmeter is suitable for measuring tasks in hygienic environments.
The compact and rugged design offers a wide variety of application possibilities, including in those where space restrictions or aggressive media play a role.
Installation is quick and easy, and does not require medium calibration.
The seal-free, self-draining measuring tube enhances process reliability.
Up to two configurable digital and analog outputs as well as the IO-Link interface ensure the right initial situation.
The DOSIC® is EHEDG-certified and FDA-compliant.
Features- Flexible measurement system for all industries and liquids
- Versatile use for conductive and non-conductive liquids and temperature measurement
- Short installation lengths and a compact design enable installation in applications with limited space
- Food-safe thanks to rust-free stainless steel and hygienic design
- Quick installation without medium calibration
- User-friendly application thanks to rotatable housing and display
- Straight measuring tube reduces pressure loss, thus reducing energy costs
Specifications
Brand
Certifications & Approvals
- CE
- cULus Listed
- EHEDG
Media
- Conductive and Non-Conductive Liquids
Output Signal
- 1 x Analog Output: 4-20 mA, 2 x Digital Input or Output (Configurable)
Nominal Width Measuring Tube
- DN 15
- DN 25
Maximum Adjustable Measuring Range
- 0 to 250 L/min
Enclosure Rating
- IP67
- IP69
Sensor Material
- Seal-free 316L Stainless Steel
