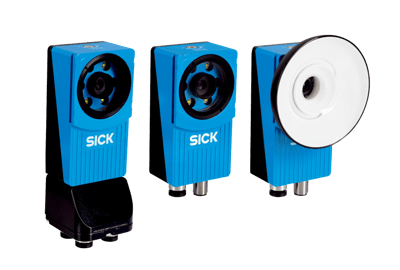

2D Machine Vision, Inspector.png
Images are representations only.

Inspector 2D Machine Vision

Brand: Sick AG

The Inspector is an intelligent vision solution in an easy-to-use sensor package. No matter if the task is to verify completeness and quality, find a part’s position or measure its dimensions, the Inspector is up to the challenge.

The sensors’ rugged design and IP 67 metal housing makes them ideal for tough environments and intelligent processing technology makes the Inspector perfect for high-speed applications. The flexible housing is designed to easily optimize the optical needs of your application. This ensures excellent inspection even with tough targets, such as highly reflective metal parts and multicolored labels.

The Inspector family provides broad support for control, monitoring and data collection through a variety of interfaces. This vision sensor provides everything to meet your integration needs and facilitate daily work.

At a glance
  • High-speed positioning, inspection and measuring
  • Powerful “object locator” tool, independent of position, rotation and scale
  • Unique, interchangeable housing design supporting dome and various optical accessories
  • Simple step-by-step configuration in PC including emulator
  • Easy-to-use operator interfaces
  • Flexible machine and HMI design interfaces
Features
  • The multi-functional vision toolbox offers smart camera-level performance but with sensor ease-of-use
  • Unique, interchangeable housing design provides the easiest way to improve image quality
  • The simple configuration in SOPAS, including emulator for offline configuration and testing, will reduce downtimes in production to a minimum
  • The easy-to-use operator interfaces are optimized to make it easier for the operator to oversee daily work more efficiently
  • Ethernet communication and web API gives excellent connectivity and freedom to customize user’s HMI

Specifications

Brand

Certifications & Approvals

  • CE
  • EAC

Enclosure Rating

  • IP67

Sensor

  • CMOS Matrix Sensor, Grayscale Values

Sensor Resolution

  • 640 x 480 pixels
  • 384 x 384 pixels

Light Source

  • Internal Lighting: White / White, Dome Light / UV / Infrared

Optical Focus

  • Adjustable Focus (Manually)

Lens

  • S-mount

Optical Format

  • 1/3"

Operator Interface

  • Web Server
  • Inspector Viewer

Communication Interface

  • EtherCAT, DC (Distributed Clocks), EoE (Ethernet over EtherCAT), FoE (Files Access over EtherCAT), CoE (CAN over EtherCAT)
  • EtherNet/IP
  • Ethernet, TCP/IP

Configuration Software

  • SOPAS ET

Focal Length

  • 6 mm
  • 10 mm

Working Distance

  • ≥ 50 mm

Dimensions

  • 100 mm x 53 mm x 38 mm
