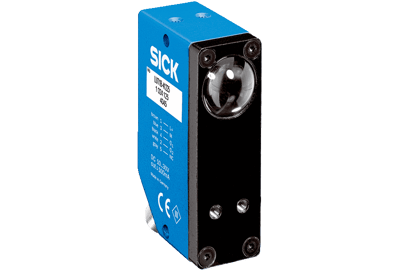

LUT1 Luminescence Sensor
Brand: Sick AGLUT1 series luminescence sensors feature easy to adjust sensitivity. The switching threshold can be adjusted via a plus/minus button, greatly simplifying setup for applications that require changeover. Even at very high speeds, luminescent marks are reliably detected.
The visible blue emitted light from the LUT1B version is well-suited for red luminescent marks.
At a glance
- Infinite switching threshold adjustment via membrane keyboard
- Long sensing distances up to 150 mm
- Sender LED UV (375 nm) or blue (470 nm)
- Switching frequency 600 Hz or 6 kHz
- Robust metal housing is reliable and ideal for tough environment conditions
- High detection reliability ensures the process: Blue transmitter LED excites red luminophores especially well. The UV LED is well-suited for blue, green or yellow marks.
- Visible light spot of the LUT1B version makes accurate alignment easy
Specifications
Brand
Certifications & Approvals
- CE
Sensing Distance
- 80 mm
- 70 mm
- 150 mm
- 50 mm
Type of Light
- LED, Ultraviolet Light
- LED, Blue
Light Emission
- Long SIde
Switching Frequency
- 6 kHz
- 600 Hz
Response Time
- 8 ms
- 85 µs
- 850 µs
Analog Output
- 0.5-10 mA
Connection Type
- Male Connector M12, 5-Pin
Switching Output
- NPN
- PNP
