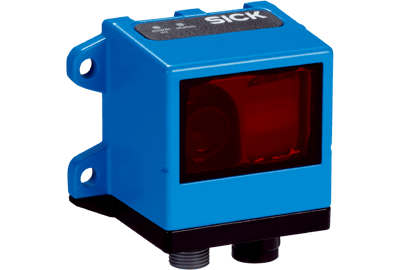

OLM100 Hi Linear Measurement Sensor
Brand: Sick AGThe OLM100 Hi is a high performance variant of the well-known OLM100. The strengths of the OLM100 Hi include very high travel speeds, extremely precise repeatability, and an SSI interface for direct feedback into drive.
At a glance
- Highly accurate camera-based bar code positioning system
- Traversing speeds of up to 10 m/s can be achieved
- Wear and maintenance-free thanks to camera technology
- Adjustable resolution as low as 0.1 mm
- Precise positioning up to 10,000 m
- Compact, extremely rugged magnesium housing
- Wide range of interfaces: SSI, RS-422, and CANopen
- Wide operating temperature range from –30° to 60° C
- High travel speed linked to precise positioning increases system efficiency and improves throughput
- Camera-based system with no moving parts increases the sensor's service life, thus reducing lifecycle costs considerably
- Very small housing dimensions combined with the latest industrial interfaces ensure integration into almost any system design, even where space is limited
- Serial interfaces (RS-422, SSI, and CANopen) offer highest flexibility and easiest system integration, hence saving costs for interface converters and protocol adaption
- The large temperature range from –30° to 60° C offers reliable use in many applications
Specifications
Brand
Certifications & Approvals
- CE
- EAC
- cULus Listed
Measuring Range
- 0 to 10,000 m
Reading Distance
- 100 mm ± 20 mm
- 130 mm ± 20 mm
Repeatability
- 0.15 mm
Movement Speed
- Maximum 10 m/s
Communication Interface
- CANopen
- Serial, RS-422
- SSI
Output Time
- 1 ms / 5 ms
Light Source
- LED, Red
Operating Temperature
- -30° to 60° C
Storage Temperature
- -40° to 75° C
- Positioning of electrical overhead conveyor vehicles
- Anti-collision monitoring of electrical overhead conveyor vehicles
- Vertical and horizontal positioning of storage and retrieval units
- Positioning of curved-track storage and retrieval units
- Positioning and anti-collision of overhead cranes
- Positioning and anti-collision of shuttles
