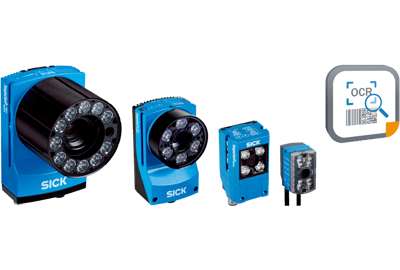

Label Checker Quality Control System
Brand: Sick AGLabel Checker is a multifunctional and easy-to-set compact quality control system designed for various label inspections, with primary focus on optical character recognition.
The system improves productivity by performing multiple inspections simultaneously and ensures high quality output.
Thanks to the advanced tools, it is not limited to reading and verifying printed texts, barcodes and 2D codes, but it also checks the correct label position, presence of pictograms, and print quality.
Moreover, Label Checker offers image filters and other features such as overlapping characters segmentation and-, image calibration that ensure reliable operation, even in challenging applications.
At a glance
- OCR, 1D, and 2D codes: reading, recognition, validation, verification
- Additional inspections: pattern matching, edge-to-edge measurement, pixel counter, blob inspection, shape locator, print quality check
- Easy teach-in of custom font
- Flexible range of C-mount lens and integrated illumination
- Web-based user interface
- Compact all-in-one system
- Multifunctional by combining various label inspections
- High reliability thanks to robust deep-learning-based algorithms
- Improved inspection on uneven surfaces due to real-time correction of image errors (rectification)
- Easy set-up and configuration via web interface
- Flexible optical design and high-power illumination, able to fit almost any application
- Rugged housing, ideal for harsh ambient conditions
- Multiple programs and job switching
Specifications
Brand
Certifications & Approvals
- CE
2D Code Type
- Data Matrix ECC200
- QR Code
- Micro QR Code
- PDF417
- Aztec
Ambient Operating Temperature
- 0° to 50° C
Power Consumption
- ± 20 %
Sensor
- CMOS Matrix Sensor, Grayscale Values, 1.3 Mpixel, 1,280 px, 1,024 px
- CMOS Matrix Sensor, Grayscale Values, 1.7 Mpixel, 1,600 px, 1,088 px
- CMOS Matrix Sensor, Grayscale Values, 1.9 Mpixel, 1,600 px, 1,200 px
- CMOS Matrix Sensor, Grayscale Values, 2.1 Mpixel, 2,048 px, 1,088 px
- CMOS Matrix Sensor, Grayscale Values, 4.2 Mpixel, 2,048 px, 2,048 px
Focal Length
- 6 to 17.1 mm
Light Source
- Interal Lighting
- Production lines in the automotive industry
- Monitoring of primary and secondary packaging in the packaging industry
- Production lines in the pharma and cosmetics industry
- Packaging and shipping lines in the consumer goods industry
- Post-printing and packaging in the field of food and beverages
- Direct part marking (DPM) in the electronics and solar industry
