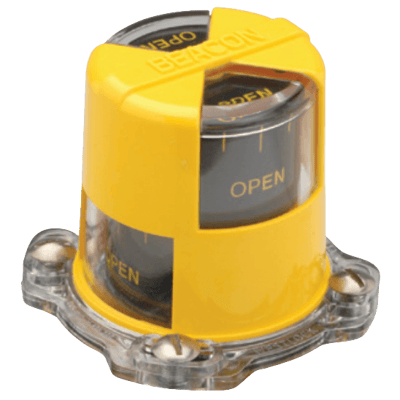

Beacon General-Purpose Visual Position & Flow Path Indicator

Brand: Westlock

Highly visual position and flow path monitoring for actuated valves, gear operators, dampers and three-way control assemblies.

The Beacon provides single 360° visual position monitoring.
Features
  • Manufactured from high impact strength, corrosion and UV resistant clear co-polyester
  • Helps increase safety for plant personnel
  • Offers instant visual recognition of valve position from all vantage points
  • 360° color coding for maximum visual impact
  • Totally enclosed instrument devoid of any external moving parts
  • Provides a true measure of valve performance
  • Monitors valve position while visually displaying flow path
  • Eliminates guesswork and reduces costs at system start-up
  • Offers positive mechanical monitoring of multiport control valves
  • Unaffected by a broad range of chemical reagents

Specifications

Applications

  • Dampers
  • Mounting to Actuators
  • Three-Way Control Assemblies
  • Valve Gear Operators

Approvals & Certifications

  • UL 94HB

Mounting

  • Direct Mounting

Operating Temperature

  • -40° to 82° C (-40° to 180° F)

Pressure Range

  • Tensile Strength at Break - psi: 0 to 7,600 (kPa: 0 to 52,400, bar: 0 to 524)

Temperature Range

  • Heat Deflection Temperature HDT: 67° C (151° F) at psi: 264 (kPa: 1,820, bar: 18.2)
