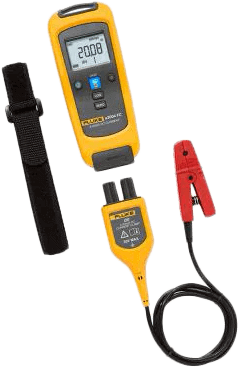

Fluke a3004 FC Wireless 4-20 mA DC Clamp Meter
Brand: Fluke CorporationAll the facts, right in the field.
The Fluke a3004 FC Wireless 4-20 mA Current Clamp Meter is one member of a family of wireless test tools that let you record and log data over time and share test data using the Fluke Connect® app with ShareLive™ video call.
Fluke Connect Wireless Test Tools put tools where measurement access or separation may be an issue. It's simple.
Connect the a3004 FC current meter, or any of the other Fluke Connect remote meters, and read the results on the Fluke Connect Wireless Multimeter or a PC from a safe distance.
Better still, the Fluke Connect test tools can send measurement data to your smartphone, so you can save and share measurements from the field with your team anytime, from anywhere.
Test or troubleshoot 4-20mA control loops used with drive systems, plc's, or building energy management systems.
Features- Measure 4 to 20 mA signals without "breaking the loop"
- Detachable clamp with extension cable for measurements in tight locations
- Use as a standalone meter or as part of the system
- Use the logging function for the recording and saving up to 65,000 measurements
Specifications
Brand
Range
- 0.05 mA to 20.99 mA DC
- 21.0 mA to 99.9 mA DC
Resolution
- 0.01 mA
- 0.1 mA
Accuracy
- 0.2 % ± 5-digits
- 1.0 % ± 5-digits
Memory
- Record up to 65,000 readings
Operating Temperature
- -10° C to +50° C
Operative Humidity
- 90 % at 35° C
- 75 % at 40° C
- 45 % at 50° C
EMC
- EN 61326-1:2013
Certifications
- CSA C-US
- CE
- FCC: T68-FBLE
- IC: 6627A-FBLE
Ingress Protection
- IP42
