RF Valve Mono Flanged Large Bore Knife Gate Valve, INSAMCOR-MLB
Images are representations only.

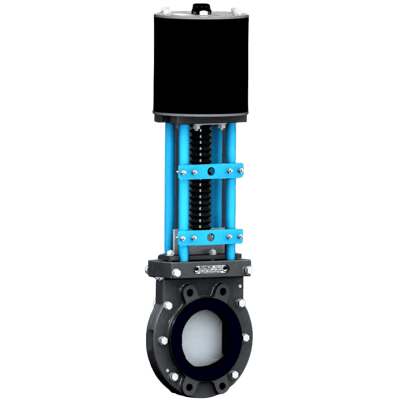

INSAMCOR-MLB Mono Flanged Large Bore Knife Gate Valve

Brand: RF Valves, Inc
Favorite

For knife gate valves that perform in the most challenging conditions, trust in INSAMCOR.
Features
  • Sealed design
  • 28" to 48" (DN700 to DN1200)
  • Mechanically retained extruded body seal
  • Combination transverse seal and adjustable stuffing box and gland design
  • Gate guided through full length of the stroke
  • Self-cleaning flush out corners prevent deposit build-up in sealing area
  • Full bore unrestricted flow area - no seat pockets or cavities
  • Bi-directional leak-proof sealing

Specifications

Brand

Enclosure, Body Material

  • Fusion Bonded Epoxy & Black etch Primed Ductile Iron

Flange Size - 28” (DN 700)

  • 28” (DN 700) - 150#
  • 28” (DN 700) - PN 10
  • 28” (DN 700) - PN 16

Flange Size - 30” (DN 750)

  • 30” (DN 750) - 150#
  • 30” (DN 750) - PN 10
  • 30” (DN 750) - PN 16

Flange Size - 32” (DN 800)

  • 32” (DN 800) - 150#
  • 32” (DN 800) - PN 10
  • 32” (DN 800) - PN 16

Flange Size - 36” (DN 900)

  • 36” (DN 900) - 150#
  • 36” (DN 900) - PN 10
  • 36” (DN 900) - PN 16

Flange Size - 40” (DN 1000)

  • 40” (DN 1000) - 150#
  • 40” (DN 1000) - PN 10
  • 40” (DN 1000) - PN 16

Flange Size - 48” (DN 1200)

  • 48” (DN 1200) - 150#
  • 48” (DN 1200) - PN 10
  • 48” (DN 1200) - PN 16
