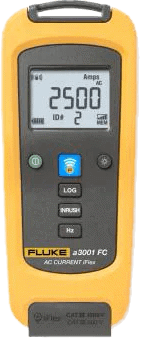

Fluke a3001 FC Wireless iFlex® AC Current Module
Brand: Fluke CorporationThe Fluke a3001 FC Wireless iFlex AC Current Module is a fully functional true-rms current meter that wirelessly relays measurements to the Fluke Connect® mobile app.
The a3001 puts the tool, not your body, near live electrical panels.
Connect the a3001 FC current module and read the results on your smartphone from a safe distance.
You can save and share measurements from the field with your team anytime, from anywhere.
Features- Measure and record up to 65,000 readings wirelessly
- Easier wire access around large conductors in tight spaces
- Inrush function; magnetic hanging strap
Specifications
Brand
Range
- 0.5 A to 2500 A AC
Resolution
- 0.1 A
Accuracy
- 3 % ± 5-digits
Battery Type
- 2 AA, NEDA 15 A, IEC LR6
Battery Life
- 400 hours
Memory
- Record up to 65,000 readings
Operating Temperature
- -10° C to +50° C
Operating Humidity
- 90 % at 35° C
- 75 % at 40° C
- 45 % at 50° C
EMC
- EN 61326-1:2006
Safety Compliance
- IEC 61010-1, 600 V CAT IV/1000 V CAT III, 3rd edition
Safety Rating
- CAT IV 600 V, CAT III 1000 V
Certifications
- CSA
- CE
- FCC: T68-FBLE IC: 6627A-FBLE
Ingress Protection
- IP42
