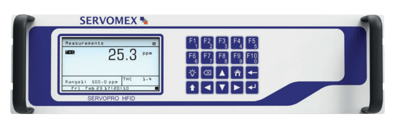

SERVOPRO HFID Total Hydrocarbon Analyzer
Brand: SERVOMEXThe SERVOPRO HFID heated total hydrocarbon analyzer utilizes a highly sensitive Flame Ionization Detector (FID) for measuring volatile hydrocarbon concentrations in vehicle/engine certification testing and industrial gas stack emissions monitoring applications.
This ensures real-time, onstream gas stream analysis, unlike gas chromatography (GC) based analyzers, which require batch sampling.
To measure methane (CH4) and non-methane hydrocarbons (NMHC), an oxidation catalytic converter is used to allow methane to pass through untouched to the FID detector, while all other hydrocarbons are oxidized to CO2.
This non-methane cutter (NMC) assembly contains the heated catalyst, which removes all but the methane content of the sample gas. The cutter temperature is set to about 250° C, which is well below the oxidation temperature of CH4, and is optimized during factory calibration.
Specifications
Brand
Accuracy
- Better than 2 % of Reading at or Above 2 ppm
Ambient Temperature Range
- 5° to 40° C (41° to 104° F)
Approvals & Certifications
- Certified to CAN/CSA C22.2 STD 61010.1
- Conforms to UL STD 61010-1
- EPA 40 CFR Part 1065/1066, Euro VI HD & Euro 6 LD Compliant Configuration Available
Power
- 115/230 Vac, 50/60 Hz, 750 W
Range
- For User-Definable Ranges from 0-30 ppm to 0-30,000 ppm as Methane
Tube Connection
- 1/4" Tube
