Mag-Trans® 2523 Series Level Transmitter

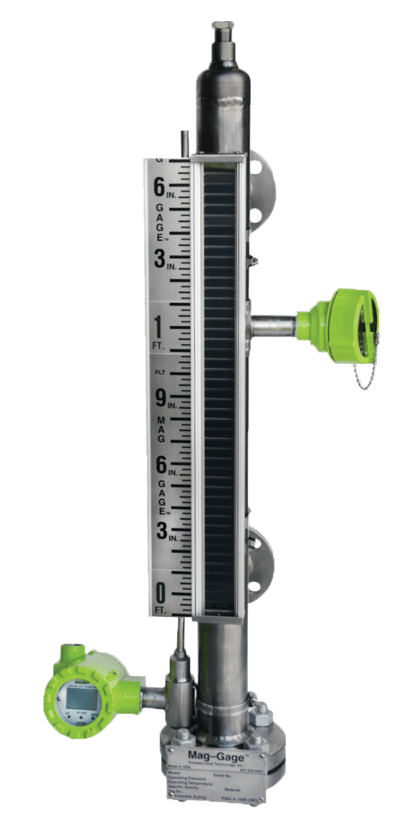

Brand: PLT Mag GageThe Mag-Trans® 2523 Series Level Transmitter is the next generation in Magnetostrictive Level Sensing Technology.
It contains a dual compartment enclosure attached to the piezomagnetic wave guide sensor.
The output is reliable, repeatable, fast and accurate.
Features- Dual Compartment Enclosure
- Epoxy Coated: Copper Free Aluminum, optional ALL-316SS
- Two Wire, Loop Powered 10-30 Vdc (24 Vdc Nominal)
- Graphic Display: Inch, Metric, Percent, Scroll or Tile
- HART-Protocol Field Communication
- Local Programming Quick and Easy Setup
- Top, Bottom, Left, or Right Mounting positions with optional Remote mounting
- Process Temperatures: -50° to +800° F
- Process Pressures: Vacuum to 2000 PSIG
- Class 1, DIV 1, GRP B, C, D
Specifications
Brand
Accuracy
- ± 0.015
Repeatability
- 0.001 % Full Span
Linearity
- 0.020 % Full Span
Damping
- 1.0-25.0 s
Material of Construction
- Enclosure: Srainless Steel
- Alloy
- Housing: Epoxy Coated Aluminum
Input
- 10-30 Vdc (24 Vdc Nominal)
Output
- 4-20 mA, HART
Display
- LCD-Graphic
- Inch, Metric, Percent, Scroll or Tile
Process Pressure
- Vacuum to 2,000 psig
Process Temperature
- -50° to +800° F
Ambient Temperature
- -25° to 175° F
Certifications & Approvals
- cFMus
- 3-A Sanitary
Mounting
- MT2523: Non-Invasive MAG-TRANS® Transmitter attached directly to the MAG-GAGE®/Byass Chamber, with a variety of mounting option
- IT2523: Direct insertion into Tank/Vessel, or Bypass Chamber
Communication
- HART-Protocol Field Communication
Electrical Classification
- Class 1, Div 1, Grp B, C, D
- Acetic Acid
- Ammonia
- Asphalt Settler
- Benzene
- Blow Case
- Boiler Steam Drum
- Butane
- Caustics
- Cooling Towers
- Deionized Water
- Dow Therm
- Drip Pot
- Feedwater Heaters
- Flare Drums
- Freon
- Glycol
- Hydraulic Oil
- Hydrazine
- Hydrochloric Acid
- Hydrofluoric Acid
- Hydrogen Sulfide
- Interface (i.e. Oil/Water)
- Jet Fuel
- LPG
- Liquid Carbon Dioxide
- Liquid Ethylene
- Molten Sulfur
- Phosgene
- Propylene
- Propane
- Seal Oil Pots
- Slop Oil
- Sour Oil
- Sump Tank
- Underground Storage
