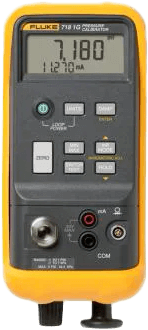

Fluke 718 Pressure Calibrator

Brand: Fluke Corporation

The Fluke 718 Pressure Calibrator provides a total pressure calibration solution for transmitters, gauges, and switches.

This compact pressure calibration solution is about a third of the size of comparable instruments and weighs just one kilogram (two pounds).

The unique easy-to-clean pump helps protect it from damage and provides the ability to service the pump without disassembly, even in the field.

With an easy-to-use error % calculation you can make pass/fail decisions quickly.

Meaning you can make decisions in the field without having to analyze the results later.

The min/max/hold function also makes it easy to capture changing measurements for comparison or documentation.

The integrated pressure switch test function, and best-in-class mA accuracy (0.015%) provide a high level of measurement confidence and even broader workload coverage.
Features
  • Pressure Source and mA Measurement to calibrate pressure devices
  • Built-in pump for sourcing pressure to 300 PSI
  • Easy-to-clean, field-serviceable, integrated pressure pump
  • Built-in switch test for calibrating pressure switches
  • Extend pressure capabilities by using Fluke 750P pressure modules

Specifications

Fluke 718 1G

  • Range: -1 psi to +1 psi, -68.9 mbar to 68.9 mbar
  • Resolution: 0.0001 psi, 0.001 mbar, 0.0001 kPa
  • Over pressure: 5x Full Scale
  • Functions: Zero, Min, Max., Hold, Damp

Fluke 718 30G

  • Range: -12 psi to 30 psi
  • Resolution: 0.001 psi, 0.1 mbar, 0.01 kPa
  • Over pressure: 5x Full Scale
  • Functions: Zero, Min, Max., Hold, Damp

Fluke 718 100G

  • Range: -12 psi to 100 psi
  • Resolution: 0.01 psi, 0.1 mbar, 0.01 kPa
  • Over pressure: 2x Full Scale
  • Functions: Zero, Min, Max., Hold, Damp

Fluke 718 300G

  • Range: -12 psi to 300 psi
  • Resolution: 0.01 psi, 1 mbar, 0.1 kPa
  • Over pressure: 375 psi 25 bar
  • Functions: Zero, Min, Max., Hold, Damp

mA Measure

  • Range: 0 mA to 24 mA
  • Resolution: 0.001 mA
  • Accuracy: 0.015 % + 1 count

Maximum Voltage

  • 30 volts

Operating Temperature

  • -10° C to 55° C

Shock

  • 1 m drop test

Vibration

  • Random, 2 g, 5 Hz - 500 Hz

Safety

  • CSA C22.2 No. 1010.1: 1992

EMC

  • EN 50082-1: 1992
  • EN 55022: 1994 Class B
