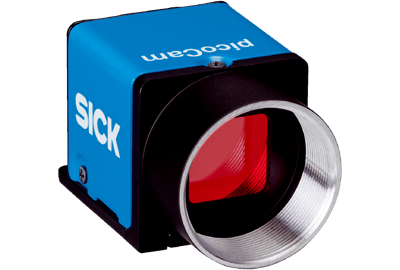

picoCam 2D Machine Vision
Brand: Sick AGThe picoCam streaming camera family is ideally suited to applications where space is restricted. So that it can be used in industrial environments, the picoCam has a screw-fit RJ45 GigE interface – the standard for industrial image processing – as well as industry-grade plug connectors for the voltage supply and trigger signals.
As an alternative, it is also possible to operate it with just one cable measuring up to 100 m in length using Power over Ethernet (PoE).
The picoCam is available with 1, 2, or 4 megapixel resolution and in color, monochrome, or NIR (optional) variants. CMOS image sensors use global shutter technology and enable multiple image sections (AOI). Image recording and transmission are decoupled in the internal 60 MB memory bank and multi-camera applications are therefore supported.
At a glance
- Ultra-compact housing
- Power over Ethernet (PoE)
- Wide-range voltage supply 12-24 V DC
- Screw-fit RJ45 GigE interface
- Screw-fit Hirose plug connector for the voltage supply and digital inputs and outputs
- Color, monochrome, and NIR variants
- Connection for C mount lenses
- The picoCam family is ideal for use on the Sensor Integration Machine (SIM), to support complex image processing tasks
- Ideal for multi-camera applications, e.g., several picoCams on the SIM
- Simple operation using just one connecting cable thanks to PoE
- Reliable, even in very tight spaces
- Intuitive operation via the I2D Software Suite for Windows from SICK
- Simple plug and play installation on the SIM thanks to pre-assembled cables
- Wide range of C mount lenses available
Specifications
Brand
Certifications & Approvals
- CE
- cULus Listed
Sensor
- CMOS Monochrome NIR
- CMOS Color
- CMOS Monochrome
Sensor Resolution
- 2,048 x 2,048 pixels (4.19 Mpixel, 1:1, 4 MP)
- 1,600 x 1,200 pixels (1.92 Mpixel, 4:3, UXGA)
- 1,280 x 1,024 pixels (1.31 Mpixel, 5:4, SXGA)
- 1,936 x 1,216 pixels (2.35 Mpixel, 16:10, 2 MP)
Light Source
- External Illumination
Supply Voltage
- 12-24 Vdc
Lens
- C-mount
Optical Format
- 1"
- 1/1.2"
- 1/1.8"
Communication Interface
- Ethernet, UDP/IP
Configuration Software
- I2D Software Suite
Dimensions
- 40.5 mm x 29 mm x 29 mm
- Single or multi-camera systems in conjunction with the Sensor Integration Machine (SIM)
- Automated image processing applications in the automotive, robotics, electronics, solar, and food and beverage industries, for example, for quality inspection, traceability, and object detection
