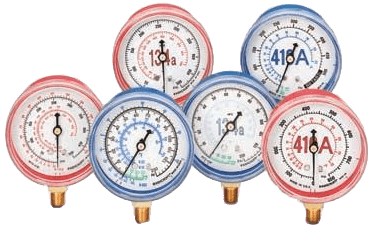

1007P/1001T XOR Commercial Refrigeration Pressure Gauge
Brand: Ashcroft IncAshcroft Types 1001T, XOR and 1007P, XOR are designed to meet the unique requirements of the HVAC, automotive and refrigeration industries.
Ashcroft Type 1001T, XOR gauges are designed for refrigerant recovery and recycling units. All gauges for this service are tested for leaks as small as 2.8 x 10-4 cc per second to ensure superior integrity.
Optional connections eliminate potential leaks at threaded joints and also eliminate customer cost for extra fittings.
Ashcroft Type 1007P, XOR gauges are designed for installation on refrigeration manifolds used in testing automotive, industrial and residential air-conditioning units.
The ABS case offers rugged durability and corrosion resistance.
Features- Patented PowerFlex movement with polyester segment for a gauge that is more shock resistant than conventional movement gauges
- FlutterGuard a standard feature in these gauges eliminates pointer flutter
Specifications
Brand
Accuracy
- 1 % at Zero
- 2 % at 3/4 Scale
- 5 % Last 1/4 Scale
Approvals & Certifications
- ISO 9001
Connection Material
- Brass
Enclosure, Body Material
- 1001T: Black Steel with Studs
- ABS (Blue-Low Pressure, Red-High Pressure)
Lens
- Window: Threaded Polycarbonate Lens - 1001T (1/4-Turn), 1007P
Materials of Construction
- Bourdon Tube: Bronze
- Patented PowerFlex Movement with Polyester Segment
- Pointer: Black, Aluminum
- Socket: Brass
Mounting
- Front Flange Mount
- Panel Mount
NPT Connection
- 1/4” NPT as 1/4” NPT Back - 1001T
- 1/8” NPT Male - 1007P (Lower), 1001T (Back)
Operating Temperature
- -40°C to 65°C (-40°F to 150°F)
Orifice Size
- Resrictor: 0.020” (0.508 mm) Throttle Plug - 1007P
- Restrictor: 0.013” (0.33 mm) Throttle Plug - 1001T
Pressure Range
- bar: 0 to 55.16
- Inches Hg: -30 to 0
- kPa: 0 to 5,516
- psi: 0 to 800
Size
- 1001T: 3-1/2” (90 mm)
- 1007P & 1001T: 2-1/2” (63 mm)
- Automotive Testing
- Industrial & Residential Air Conditioning as HVAC/R
- Refrigerant Recovery & Recycling Equipment
- Refrigeration Manifolds
