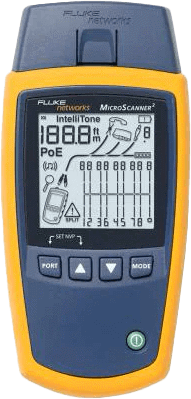

Fluke Networks MicroScanner™ Cable Verifier
Brand: Fluke CorporationThe MicroScanner2 Cable Verifier helps find common errors quickly, displaying results from what were four different test modes all at once on its oversized, backlit LCD display: graphical wire map, pair lengths, distance to fault, cable ID, and far-end device.
Its integrated RJ11, RJ45, and coax test ports support virtually any type of low-voltage cable testing, with no need for awkward adapters.
The end result is reduced test time and technician error — which makes high-quality installations more efficient and troubleshooting easier.
Features- Wire map, length, cable ID, distance to fault on one screen
- Tests common media types, such as RJ11, RJ45, and coax, without adapters
- VDV Service Detection verifies 10/100/1000 Ethernet, POTS, and PoE
Specifications
Brand
Operating Temperature
- 32° F to 113° F
- 0° C to 45° C
Shock and Vibration
- Random, 2 g, 5 Hz-500 Hz (Class 2)
- 1 m drop test with and without wiremap adapter attached
Safety
- IEC 61010-1 3rd Edition
EMC
- IEC 61326-1
Test Connectors
- Shielded 8-Pin modular jack accepts 8-Pin modular (RJ45) and 4-Pin modular (RJ11) plugs. MicroScanner2: F-connector for coaxial cable.
Display
- Monochrome LCD with backlight
Test Modes
- Cable test
- Tone
- PoE
Cable Types Tested
- Twisted pair: UTP, FTP, SSTP
- Coaxial (MicroScanner): 75 Ω, 50 Ω, 93 Ω
