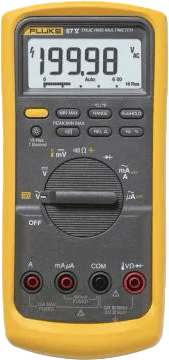

Fluke 87V Industrial Multimeter

Brand: Fluke Corporation

The Fluke 87V Industrial Multimeter provides the resolution and accuracy to efficiently troubleshoot motor drives, plant automation, power distribution, and electromechanical equipment - even in loud, high-energy, and high-altitude locations.

The 87V is designed so you can work more efficiently.

  • Easy-access door for fast battery changes without breaking the calibration seal
  • Analog bar graph for fast changing or unstable signals
  • Large digit display with bright, two-level backlight for easier reading in low light
  • Touch Hold keeps readings on display even after removing probes
The 87V lets you identify complex electrical problems fast. It supports accurate measurements on VFDs using a low-pass filter.

The meter also captures intermittents as fast as 250 µS using Peak Capture.

High-frequency, high-energy noise generated by large drive systems is blocked from your measurements with specially designed shielding.
Features
  • Identify complex signal problems fast
  • Supports accurate measurements on VFDs using a low-pass filter
  • Captures intermittents as fast as 250 µS with Peak Capture

Specifications

Maximum Voltage

  • DC: 1000 V
  • AC: 1000 V

Accuracy

  • DC: ± (0.05 % + 1)
  • AC: ± (0.7 % + 2) True RMS

Maximum Amps

  • 10 A - 20 A for 30 Second Max.

Maximum Frequency

  • 200 kHz

Maximum Capacitance

  • 9,999 µF

Maximum Resistance

  • 50 MΩ
