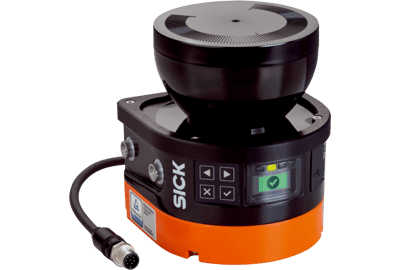

OutdoorScan3 Safety Laser Scanner
Brand: Sick AGThe outdoorScan3 safety laser scanner protects people in a wide range of mobile and stationary outdoor applications. Thanks to intelligent algorithms and the outdoor safeHDDM® scanning technology, operation is reliable even in harsh weather conditions, which considerably increases your productivity.
The outdoorScan3 stands out thanks to the rugged housing, smart connectivity and advanced diagnostic functions. The Safety Designer configuration software from SICK also enables easy and intuitive operation.
At a glance
- Certified in accordance with ISO 13849 and IEC 62998 for protecting people indoor and outdoor
- Outdoor safeHDDM® scanning technology
- Individual field settings
- Optimized product design for outdoor use
- Protective field range: 4 m
- Up to 128 freely configurable fields
- Safe networking with Flexi Soft safety controller
- High productivity due to safe human-machine cooperation in outdoor areas
- Outstanding availability even in harsh weather conditions
- Flexibility for safe, customized automation processes
- User-friendly and suited for outdoor use
- Easy access to diagnostic data
- Precise localization due to highly precise measurement data
- Continuous material flow due to intralogistics processes between buildings
Specifications
Brand
Certifications & Approvals
- CE
- EAC
- cULus
Protective Field Range
- 4 m
Warning Field Range
- 40 m
Scanning Angle
- 275°
Number of Fields
- 8 / 128
Response Time
- ≥ 90 milliseconds
OSSD Pairs
- 1 / 0
Integration in the Control System
- Local Inputs and Outputs (I/O) / CIP Safety Over EtherNet/IP
Safety Level
- Type 3, PL d, SIL 2, SILCL2
Ambient Operating Temperature
- -25° to 50° C
Storage Temperature
- -25° to 70° C
Enclosure Rating
- IP65
Housing Material
- Aluminum
- Horizontal hazardous area protection on stationary outdoor machines
- Safety and navigation for automated guided vehicles and mobile robots in outdoor areas
- Horizontal hazardous area protection for safe human-machine cooperation in outdoor areas
- Safeguarding and automation of passenger boarding bridges
