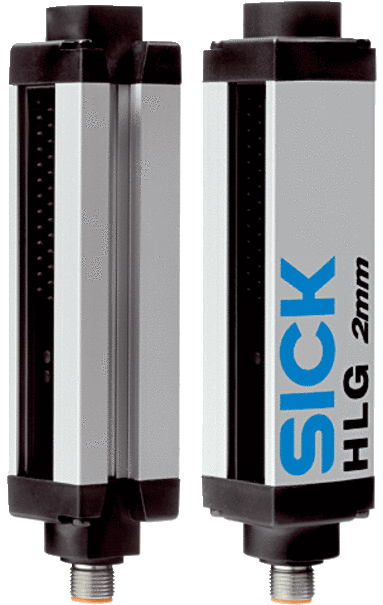

HLG Switching Automation Light Grid
Brand: Sick AGThe high-resolution HLG light grid from SICK is the ideal solution for all applications where flat objects on a conveying system are to be reliably detected.
This is possible due to a consistent resolution of 2 mm over the entire detection zone, a very low switching hysteresis and a very fast response time of only 3 ms.
The HLG offers perfect detection solutions, e.g. in fast mail sorting systems, in packaging machines with high throughput, when counting small parts or detecting leading edges in logistics.
Features- Reliable object detection throughout the entire sensing range ensures consistent and reliable operation
- High availability thanks to its ability to detect very flat objects
- The quick response time of the HLG allows the customer to use higher conveyor speeds
- Cable synchronization makes for very high availability
- The highest measurement resolution for the detection of very small objects on the conveying belt enables error-free operation in edge detection applications or when counting small objects
Specifications
Brand
Resolution
- 2 mm
Response Time
- 3 milliseconds
Beam Separation
- 2 mm
Detection Height
- 50 mm
Operating Range
- 1.5 m
Switching Output
- 2 x PNP
- 2 x NPN
