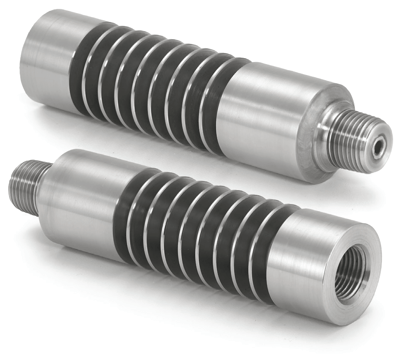

1198 Finned Siphon
Brand: Ashcroft IncDoes not ship to OH, United States
The Ashcroft® 1198 finned siphon protects pressure instruments from the effects of elevated temperatures.
A reduced orifice decreases the volume of the process medium in the siphon allowing efficient heat transfer between the medium and the siphon.
The siphon’s metallic fins maximize exposure to the ambient temperature for effective dissipation.
Features- Effectively protects instruments from elevated temperatures
- Siphon and sensing instrument mount directly to the process
- Built-in dampening mechanism combats process pulsation
- Compatible with many process media
- Use with gauges, switches, transducers and diaphragm seals
Specifications
Brand
Process Connection
- 1/2" NPT Male
- 1/4" NPT Male
Material of Construction
- 316L Stainless Steel
- Monel
Max Allowable Working Pressure
- 3,000 psi @ 700° F
Temperature Rating
- 371° C (700° F)
Wetted Materials
- 316L Stainless Steel
- Chemical & Petrochemical
- Oil & Gas Applications
- Power
- Pulp & Paper
