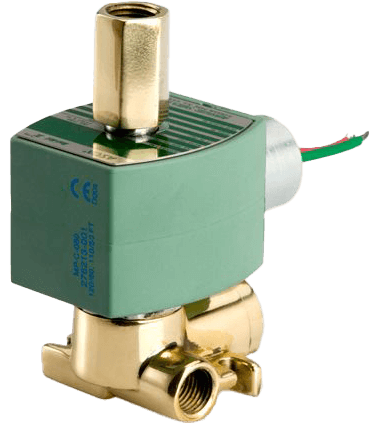

ASCO 317 Series Quick-Exhaust Solenoid Valves

Brand: ASCO

The ASCO Series 317, also known as 8317, is a line of quick-exhaust solenoid valves designed for quick venting to 0 psi through the exhaust orifice to quickly shift control valves.

The valves are available in low-power, intrinsically safe, voltage-ranging, and harsh environment constructions.

The 317 Series is suitable for a wide variety of applications such as automotive, analytic and diagnostic instruments, biofuels, dust collector systems, and heating equipment.
Features
  • RedHat Next Generation version uses electronics technology to manage power, providing less energy consumption and enhanced pressure and flow ratings
  • Low-power model has one-piece solenoid with highly efficient solenoid cartridge and special low-wattage coil. Designed for automotive automation applications with PLC compatibility
  • Resilient seated poppets for tight shutoff
  • Mountable in any position for easy installation

Specifications

Brand

Body Material

  • Brass, Stainless Steel

Flow

  • From 0.1 Cv to 0.5 Cv, from 0.5 Cv to 1.0 Cv, from 1.0 Cv to 2.0 Cv, from .2 to .43 Kv, from .43 to .86 Kv, from .86 to 1.73 Kv

Function

  • 3-Way - 3/2 Normally Closed, 3-Way - 3/2 Normally Open

Maximum Differential, Maximum Operating Pressure

  • Vacuum to 150 psig, 150 to 500 psig

Media

  • Air, Inert Gas, Light Oil, Water

Operating Environment

  • Hazardous, Indoor, Outdoor

Pipe / Port Size

  • 1/4, 3/8

Port Type

  • Female NPT

Standards & Regulations

  • Typical 1, Typical 2, Typical 3, Typical 3S, Typical 4, Typical 4X, Typical 6, Typical 6P, Typical 7, Typical 9, UL, ATEX Zone 0-20, Class I, Div. 1, Class I, Div. 2, CSA, IEC Ex Zone 0-20

Valve Actuation

  • Solenoid - Air Pilot

Voltage

  • 24 AC, 110 AC, 480 AC, 6 DC, 12 DC, 24 DC, 48 DC, 120 DC, 240 DC, 12 to 24 DC Voltage Ranging, 24 to 120 AC/DC Voltage Ranging, 100 to 240 AC/DC Voltage Ranging, 125 DC Battery Charging / 50, 50 / 60, 60
