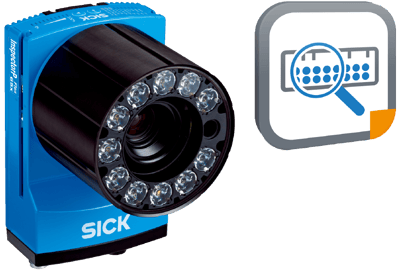

Pinspector 2D Quality Control System
Brand: Sick AGPinspector 2D is an easy-to-set compact quality control system designed for contactless pin inspection - verifying the presence of pins and their position.
Thanks to its advanced inspections, the system also detects and sorts blobs according to pre-set parameters, reads and verifies 1D and 2D codes, provides OCR, OCV functions and measures dimensions. The specialization in the 2D pin inspection with the combination of additional inspections, makes it great match for the demanding applications.
At a glance
- Pin presence and position inspection
- Additional inspections: pattern matching, edge-to-edge measurement, pixel counter, blob inspection, shape locator, reading and verification of 1D and 2D codes
- Easy teach-in of connector pin patterns
- Web-based user interface
- Inspection statistics
- Compact all-in-one system
- Multifunctional by combining various inspections
- High reliability thanks to robust algorithms
- Easy set-up and configuration via web interface
- Flexible optical design
- Rugged housing, ideal for harsh ambient conditions
- Multiple programs and job switching
Specifications
Brand
Certifications & Approvals
- CE
2D Code Type
- Data Matrix ECC200
- QR Code
- PDF417
- Micro QR Code
- Aztec
Ambient Operating Temperature
- 0° to 50° C
Power Consumption
- ± 20 %
Task
- Presence Inspection
- Quality Inspection
- Measuring, 2D
Sensor
- MOS Matrix Sensor, Grayscale Values 4.2 Mpixel 2,048 px 2,048 px
- CMOS Matrix Sensor, Grayscale Values 1.9 Mpixel 1,600 px 1,200 px
- PCB and connector manufacturing in automotive and part suppliers
- PCB and connector manufacturing in electronics and solar
