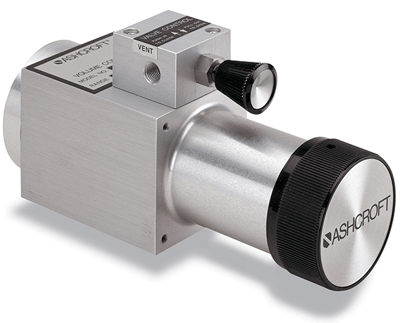

AVC-1000/AVC-3000 Pressure Volume Controller
Brand: Ashcroft IncDoes not ship to OH, United States
The Ashcroft® AVC-1000 and AVC-3000 pressure volume controllers provide a means to precisely set pressures within a closed pneumatic system.
Providing quick-and-easy operation, models are paired with test instruments, creating a reliable standard for calibration and test purposes.
Features- Mechanical rotation is directly proportional to volume change due to piston travel
- Integral balance valve equalizes pressure and acts as pressure-relief valve precision pressure adjustment between vacuum and 3,000 psi
- Does not require compressed gas source to generate low pressure less than 1 psi.
Benefits:
- Eliminates need to hunt for precise pressure points with regulator and bleed valve
- uickly “dialing-in” exact pressures cuts down calibration time
- Can generate a small amount of pressure without an external pressure source
Specifications
Brand
Process Connection
- 1/8" NPT Female
Material of Construction
- Aluminum body, Stainless steel, Brass, Teflon®, Delrin®, and Buna-N®
Operating Temperature
- 20° to 120° F (0° to 49° C)
Resolution
- AVC-1000: 0.00025 psi
- AVC-3000: 0.0005 psi
Pressure Range
- AVC-1000: Vacuum to 1,000 psi
- AVC-3000: Vacuum to 3,000 psi
Mechanical Rotation
- AVC-1000: (31)
- AVC-3000: (61)
- Calibration benches
- Laboratories
