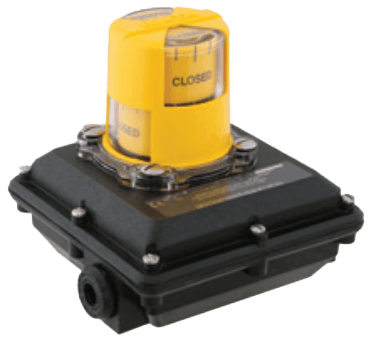

Accutrak 3200/3500 Series Rotary Position Monitor

Brand: Westlock

Weatherproof rotary position monitors with the option of high-performance polyamide resin, powder-coated aluminum or stainless steel enclosures they offer a variety of switching options.
Features
  • Weatherproof design meeting a wide range of worldwide approvals
  • Touch set cams are hand adjustable, spring loaded and self-locking providing quick calibration of position switches and sensors
  • Terminal strips are pre-wired and numbered with generous working space for ease of use
  • Strong durable Beacon offers 360º visual indication available in a choice of styles and colors
  • Additional conduit for easy field wiring and mounting accessories as standard
  • Wide range of switches and sensors
  • Switch stabilisation plate
  • Standardized mounting pattern for easy adaptation to common bracketry
  • Range of drive shaft options
  • Engineered resin enclosure is robust yet lightweight; allows broad operating temperatures and provides exceptional chemical, UV and impact resistance
  • Aluminum enclosures with ultra-low copper content (0.2% maximum) ensure robust performance in corrosive environments
  • Rugged stainless steel enclosure
  • IP rated plugs certified where applicable

Specifications

Approvals & Certifications

  • IEC
  • NAMUR VDI/VDE 3845

Bushing Material

  • Nylon
  • Oil Impregnated Bronze (Aluminum Enclosure)
  • PTFE (Stainless Steel Enclosure)

Conduit Connection

  • 1/2”-14 NPT Conduit Entries
  • 3/4” NPT Conduit Entries
  • M20 Conduit Entries
  • M25 Conduit Entries

Enclosure Finish

  • Aluminum with Powder Coat Finish
  • Stainless Steel with Electro-Polished Finish

Enclosure, Body Material

  • Aluminum
  • Engineered Resin
  • Stainless Steel

Environmental Protection

  • IP66
  • IP67
  • IP68
  • Weatherproof

Materials of Construction

  • Beacon Visual Indicator: Co-Polyester
  • Hardware: Stainless Steel

Shaft Material

  • Stainless Steel

Switch Type

  • DPDT Mechanical Switches
  • Magnum SPDT (Hermetically Sealed Proximity Typical) Switches
  • Pneumatic 3/2 Operation - 3500 Series
  • V3 Inductive Proximity Sensors
  • V3 SPDT Mechanical Switches
