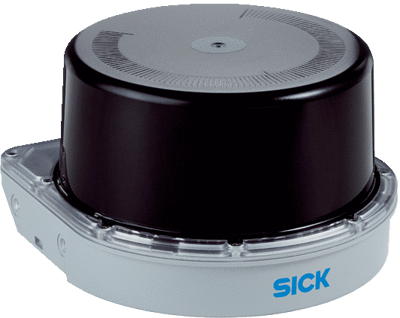

PeopleCounter 3D LiDAR Sensor
Brand: Sick AGThe PeopleCounter is a solution developed by SICK which enables differentiation of people from objects over large detection areas.
Based on the hardware of the MRS1000 3D LiDAR sensor, which generates measurement data in the form of a point cloud, the integrated SensorApp processes the data.
With the PeopleCounter, people can be reliably identified using their contours.
This means only people are counted, while objects are blanked out.
The process runs without recording personal data, ensuring anonymized data processing.
Features- Anonymized people counting in public spaces
- Read out of current utilization of space
- Reliable identification of the direction of movement of people at entrances and exits
- Reliable differentiation between humans and objects: Humans are detected and objects are not considered due to their contours.
- Quick and easy commissioning
Specifications
Brand
Certifications & Approvals
- CE
- EAC
- TÜV
Measurement Principle
- HDDM+
Aperture Angle
- Horizontal 275°
- Vertical 7.5°, Over 4 Scan Planes
Angular Resolution
- 0.25°
Working Range
- ≤ 10 m, Width of the Counting Range
Scanning Range
- At 10 % Remission: 16 m
- At 90 % Remission: 30 m
Amount of Evaluated Echoes
- 3
Scanning Frequency
- 50 Hz, 4 x 12.5 Hz
Heating
- Self-Heating
Communication
- Ethernet
- Shopping Centers
- Airports
- Museums
- Cruise Ships
- Amusement Parks
- Train Stations
- Trade Fairs
- Concerts
