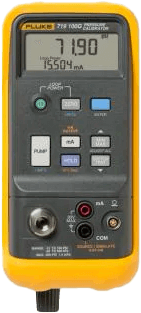

Fluke 719 Pressure Calibrator
Brand: Fluke CorporationForget the hassle of hand pumping.
Now you can calibrate and test pressure devices quickly and easily with one hand, saving valuable time. With the innovative, built-in electric pump, the Fluke 719 Electric Pressure Calibrator provides pressure calibration at your fingertips!
Use the programmable pump limit settings to eliminate over-pressurization, and to set “pump to” pressure values.
The unique cleanout port design reduces pump failures, and makes the 719 easy to clean without repair.
The compact, lightweight form, combined with one-handed calibration, makes this pressure calibrator the ideal tool for busy process professionals.
The Fluke 719 delivers pressure calibration made easy, by a name you know and trust for all your process calibration needs.
Features- Pressure calibrator with built-in electric pump for one-handed pressure calibration
- Offers best-in-class pressure measurement uncertainty of 0.025%
- Measures and sources mA with best in class 0.015% accuracy to test valves and I/Ps
- Calibrates 30 psi and 100 psi pressure ranges
- Features precision pressure adjustment vernier for easy and accurate pressure calibration
- Simulates mA signals to troubleshoot 4-20 mA loops
- Powers transmitters during test using 24 V loop supply
- Comes with three-year warranty for calibrator
- Provides variable release rate bleed valve for easy pressure adjustment
- Offers ideal performance for high accuracy transmitter calibration
- Tests pressure switches easily with switch test function
- Provides extended pressure measurement range with any of 50 750P series Pressure Modules
- Pump cleanout ports to reduce pump failures from moisture and fluid damage
Specifications
Brand
Operating Temperature
- -10° C to 55° C
Safety
- CSA C22.2 No. 1010.1:1992
EMC
- EN 50082-1:1992
- EN 55022:1994 Class B
Battery
- Two 9 V alkaline batteries
Fluke-719 30G
- Range: -12 to 36 psi, -850 mbar to 2.4 bar
- Resolution: 0.001 psi, 0.1 mbar
- Accuracy: 0.025 % Range for 6 months
Fluke-719 100G
- Range: -12 to 120 psi, -850 mbar to 8 bar
- Resolution: 0.01 psi, 1 mbar
Maximum Pressure Generation
- 120 psi
- 8 bar
