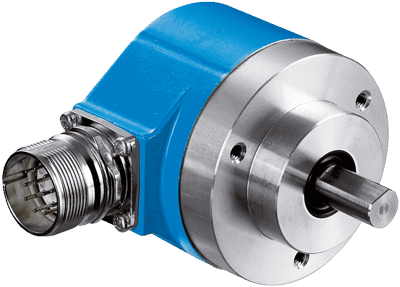

ARS60 SSI/Parallel Absolute Encoder
Brand: Sick AGThe modular setup of its CoreTech technology enables the compact ARS60 absolute singleturn encoder to provide a customized solution for all applications.
All common mechanical variants are available with any number of increments between 2 and 32,768 and are either equipped with an SSI or parallel output, making the ARS60 a universal solution for nearly any application requirements.
Features- Freely programmable resolution (up to 15 bits)
- Easy zero adjustment directly on the encoder by pressing a button or via sub cable (cable version)
- Suitable for all mounting methods thanks to the individual mechanical interfaces
- A versatile base model thanks to the easily exchangeable collets for the blind hollow shaft and through hollow shaft
- Versions with cable and M23 connector connection in axial and radial designs available
Specifications
Brand
Certifications & Approvals
- CE
- cULus
Enclosure Rating
- IP66
Encoder Design
- Singleturn
Shaft Type
- Through Hollow Shaft
- Blind Hollow Shaft
- Solid Shaft, Face Mount Flange
- Solid Shaft, Servo Flange
Shaft Diameter
- 6 mm
- 10 mm
- 15 mm
- 14 mm
Connection Type
- Cable, 22-Wire, Axial
- Cable, 22-Wire, Radial
- Male Connector, M23, 21-Pin, Axial
- Male Connector, M23, 21-Pin, Radial
- Cable, 11-Wire, Axial
- Cable, 11-Wire, Radial
- Male Connector, M23, 12-Pin, Radial
- Male Connector, M23, 12-Pin, Axial
Communication Interface
- SSI / Parallel Data World
- Electronics and Solar Industries
- Textile Machinery
- Packaging Industry
- High-bay Warehouses
- Woodworking Machines
- Machine Construction
- Automotive Industry
- Material Handling
