Images are representations only.

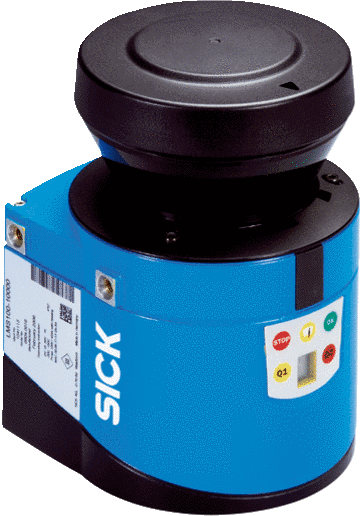

LMS1xx 2D LiDAR Sensor

Brand: Sick AG
Favorite

The LMS1xx 2D LiDAR sensors form part of the extensive portfolio of 2D laser scanner from SICK, and offer an efficient and cost-effective alternative to other solutions for both indoor and outdoor use.

SICK offers these 2D LiDAR sensors in a number of variants.  The LMS1xx scanners can therefore easily cope with various requirements in terms of sensing range and application software. And there are a number of security versions to round off the wide range of applications.

All variants in this product family are marked out by their compact design and dimensions, as well as their light weight.

Compact design meets impressive innovation: Multi-echo technology increases the availability of the sensors outdoors and even enables them to be installed behind glass.
Features
  • Straightforward integration and mounting due to compact design
  • Low purchase and operating costs: One device monitors areas of over 5,500 m2 in size
  • Product family with many variants, which also provide solutions for demanding and specialized applications
  • Extended filter options significantly reduce measurement errors caused by conditions such as fog, rain or snow
  • Optional CAN I/O module increases number of digital outputs for greater application flexibility
  • Ethernet interface makes for easy implementation and remote maintenance

View Details

Specifications

Brand

Certifications & Approvals

  • CE
  • TÜV
  • EAC

Application

  • Security
  • Outdoor
  • Indoor

Aperture Angle

  • Horizontal 270°

Angular Resolution

  • 0.25°, 0.5°

Working Range

  • 0.5 to 50 m

Scanning Range

  • At 90 % Remission: 20 to 50 m
  • At 10 % Remission: 18 to 30 m

Amount of Evaluated Echoes

  • 2

Scanning Frequency

  • 25 Hz, 50 Hz

Heating

  • No / Yes

Operating Temperature

  • Ambient -40° to 60° C

Communication

  • CAN
  • Serial
  • Ethernet

Digital Outputs

  • 3 (2 Relay, 1 Digital)
  • 3

Digital Inputs

  • 4 Digital
  • 2 Digital and 2 Encoder Inputs
  • 4 Digital (Thereof 2 Suitable for Encoders)

Enclosure Rating

  • IP67
  • IP65
