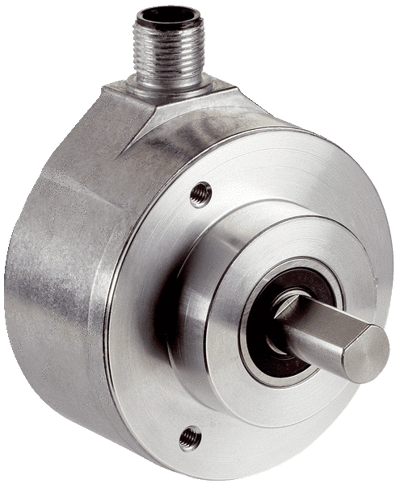

DFS60 Incremental Encoder

Brand: Sick AG

The DFS60 is a high-resolution incremental encoder with a diameter of 60 mm.

It offers a wide variety of mechanical and electric interfaces and can also be programmed by the customer if required.

Programming of the output signal and zero pulse is a unique feature for the market.

The high enclosure rating, wide temperature range and large ball bearing distance ensure extreme robustness, making the DFS60 the ideal encoder for industrial applications in harsh environments.
Features
  • Reduced storage costs and downtime due to customer-specific programming
  • Variety of different mechanical and electrical interfaces enable the encoder to be optimally adjusted to fit the installation situation
  • Excellent concentricity even at high speeds
  • High resolution of up to 16 bits ensures precise measurements
  • Permanent and safe operation due to a high enclosure rating, temperature resistance and a long bearing lifetime
  • Programmability via the PGT-08 programming software and the PGT-10-Pro display programming tool allow the encoder to be adapted flexibly and quickly according to customer needs
  • Programmable zero pulse position simplifies installation

Specifications

Brand

Certifications & Approvals

  • CE
  • cULus

Pulses Per Revolution

  • 0 to 65,536

Sine/Cosine Periods Per Revolution

  • 1,024

Shaft Diameter

  • 6 mm, 10 mm, 8 mm, 3/8”, 12 mm, 1/2″, 14 mm, 15 mm, 5/8″

Connection Type

  • Cable, 8-Wire, Universal
  • Male Connector, M12, 8-Pin, Axial
  • Male Connector, M12, 8-Pin, Radial
  • Male Connector, M23, 12-Pin, Axial
  • Male Connector, M23, 12-Pin, Radial

Communication

  • TTL / HTL
  • HTL / Push pull
  • TTL / RS-422
  • Sin/Cos

Enclosure Rating

  • IP65
  • IP67

Supply Voltage

  • 4.5-32 V
  • 10-32 V
  • 4.5-5.5 V

Output Frequency

  • ≤ 200 kHz
  • ≤ 820 kHz
  • ≤ 300 kHz
  • ≤ 600 kHz

Operating Temperature

  • -40° to 100° C
  • -30° to 100° C
  • 0° to 85° C

Housing Material

  • Aluminum Die Cast

Flange Material

  • Aluminum

Shaft Material

  • Stainless Steel
