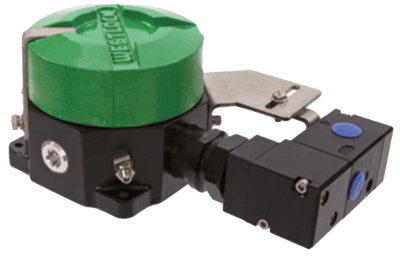

Quantum 2800 Series Linear Control Monitor
Brand: Westlock
The Quantum 2800 combines the functionality of an flameproof junction housing, position switches and Falcon solenoid valves to provide cost-effective control monitoring of linear valves.
Features- Flameproof design meeting a wide range of worldwide approvals
- Quantum enclosures integrate position sensors and low power solenoid valves into a single unit
- Solenoid coils integrated within Quantum housing
- Choice of factory pre-wired 3/2 and 5/2 way Falcon solenoid valves
- Solenoid valves with a choice of Cv ratings and coil voltage
- Factory pre-wired SPDT hermetically sealed proximity switches provide labor savings for position sensing of smaller valves
- Aluminum enclosures with ultra-low copper content (0.2% maximum) ensure robust performance in corrosive environments
- Rugged stainless steel enclosure
- Conduit entries and numbered terminal strip provided for convenient integration of a solenoid valve
- Easy back-wiring of 316 Silver Bullet sensors to accommodate position sensing of large valves
- Magnetic triggering bolts included with every unit
- Optional adjustable triggering system available in Delrin or stainless steel
- IP rated plugs certified where applicable
Specifications
Brand
Approvals & Certifications
- ATEX Ex II 2 GD Exd IIC T6 Gb, Ex TD A21 IP6X T C
- IEC Ex II 2 GD Exd IIC T6 Gb, Ex TD A21 IP6X TC
BSP Connection
- 1/4” BSP
Coil Voltage
- Solenoid: 24 Vdc
- Solenoid: 24-240 Vac
Conduit Connection
- 1/2” NPT Conduit Entries
- 3/4” NPT Conduit Entries
- M20 Conduit Entries
- M25 Conduit Entries
Distance
- Sensor: 0.1” (2.54 mm) End Sensing
Enclosure Finish
- Aluminum with Powder Coat Finish
- Stainless Steel with Electro-Polished Finish
Enclosure, Body Material
- Aluminum
- Stainless Steel
Environmental Protection
- Flameproof
- IP66
- IP67
- IP68
Flow Rate
- Falcon Solenoid Valve: 1.1 Cv
- Falcon Solenoid Valve: 3.5 Cv
Hysteresis
- 0.76 mm
Materials of Construction
- Delrin
- Falcon Solenoid Valve: Aluminum
- Falcon Solenoid Valve: Stainless Steel
NPT Connection
- 1/4” NPT
Operating Time
- 3 milliseconds
Repeatability
- 0.13 mm
Solenoid Type
- 3/2-Way
- 5/2-Way
Switch Type
- SPDT (Hermetically Sealed Proximity Typical) Switches with Tungsten Contacts
Temperature Range
- -30° to 85° C (-22° to 185° F)
