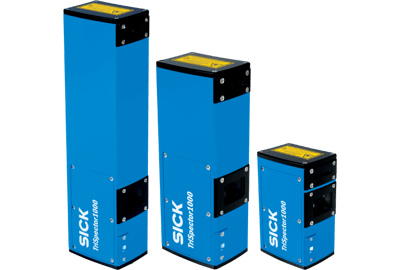

TriSpector1000 3D Machine Vision

Brand: Sick AG

The TriSpector1000 is a stand-alone configurable sensor for cost-efficient 3D inspections. No matter what the shape, color or orientation of the product, the sensor is up to the challenge. Now content, completeness and emptiness can be verified in all dimensions. It is perfectly suited for solving quality control applications in the consumer goods and packaging industry.

Thanks to its intuitive user interface, the TriSpector1000 ensures easy commissioning and operation. Even quick device replacement is easy with guaranteed field of view and re-use of saved settings.

At a glance
  • 3D inspection of moving parts
  • Intuitive user interface
  • Embedded image analysis
  • Easy replacement concept
  • High resolution 3D image with intensity overlay
  • Factory calibrated 3D data, true mm values in all dimensions
  • Rugged IP67 metal housing
Features
  • Reliable 3D inspection even when part color, position and height varies
  • Easy commissioning and operation thanks to an intuitive user interface
  • Embedded image analysis for fast configuration
  • Quick device replacement due to guaranteed field of view and re-use of saved settings
  • Intensity data enhances 3D navigation, allows checking presence of label, printed pattern or object rotation.
  • Factory calibrated data simplifies setup and reduces time and effort
  • Withstands harsh or food processing environments

Specifications

Brand

Certifications & Approvals

  • CE
  • EAC
  • TÜV

Height Range

  • Maximum 60 to 800 mm

Window Material

  • Glass
  • PMMA

Ambient Operating Temperature

  • 0° to 50° C

Scan/Frame Rate

  • 5,000 3D Profiles/s

Light Source

  • Internal Lighting Laser, Visible, Red, 660 nm, ± 7 nm

Enclosure Rating

  • IP67

Configuration Software

  • SOPAS ET

Communication Interface

  • Ethernet, TCP/IP
  • Serial, RS-232, RS-422, Encoder (RS-422 / DBS36E-BBCP02048)
  • Incremental, TTL

  • Quality control in consumer goods; volume and thickness measuring, counting and positioning of objects
  • Box integrity including content verification, completeness and emptiness check
  • Product dimensioning in food processing
