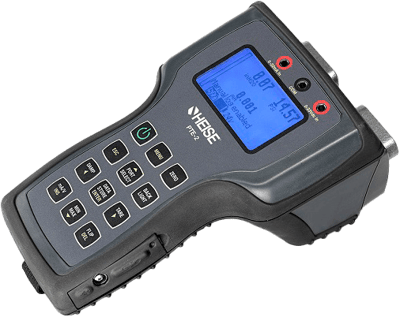

PTE-2 Handheld Calibrator

Brand: Heise

The Heise® PTE-2 handheld digital calibrator is a portable, multifunction instrument performing precision measurement of pressure, temperature, current or voltage.

The base unit includes application-specific firmware for the convenient calibration and setting of measurement and control devices, as well as logging of associated data.

In addition, the PTE-2 has the ability to interface with a computer, data acquisition system or terminal emulator via the standard USB interface.

An ideal instrument when precision calibration and traceability are required.
Features
  • Interchangeable pressure modules with ranges from 0.25 in. H2O up to 10,000 psi
  • Large LCD display (1.5″ x 2.5″)
  • FM, CSA and ATEX Intrinsically safe versions for Hazardous Locations (Optional)
  • Dual sensor module bay for interchangeable modules
  • Data logging capability up to 16,000 records
  • USB communications port SD memory card slot
  • Standard firmware features – min./max., tare, programmable damping, percent error function, and switch test function, leak decay test function built in Power supply to power device under test

Specifications

Brand

Sensor Inputs

  • Banana jack inputs for DC voltage or current monitoring
  • Two Interchangeable pressure and temperature module bays

Accuracy

  • Low pressure Modules: ± 0.1 %, ± 0.06, ± 0.7 % of Span
  • Medium/high pressure modules ± 0.025 %, ± 0.05 %, ± 0.1 % of Span

Electrical Connection

  • 4 mm banana jacks

Operating Temperature Range

  • -4° F to 120° F
  • -20° C to 49° C

Pressure Ranges

  • 0.25” H₂O up to 10,000 psi

Certifications & Approvals

  • NIST traceable certification
  • UL 61010-1
  • Optional FM/CSA/ATEX

  • Gas pipeline / transmission
  • Refineries
  • Chemical and Petrochemical Plants
  • Power Generation
  • Test and Measurement
  • Calibration Laboratories
  • Pharmaceutical and Biotech
  • Hospitals and Medical Research
