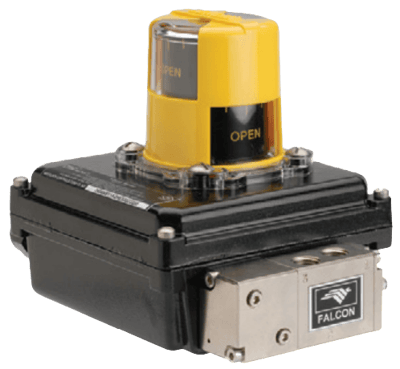

7200/7300/7400/7500/7600/7700 Control Monitor

Brand: Westlock

Intellis is a family of fully-integrated control monitors that provide cost-effective valve automation and intelligent networking via all the major network protocols.
Features
  • Dedicated network modules (PACs) for all major protocols
  • Simple in-field conversion of network protocols
  • Multiple housing options (resin, aluminum, stainless steel)
  • Models approved for all hazardous area applications
  • Control and monitoring for rotary and linear valves
  • Non-contact position monitoring by Hall effect sensors
  • Integrated pneumatic actuation control via pre-wired Falcon solenoid valves
  • On-line predictive and maintenance-related diagnostics
  • Eliminates wiring cost of conventionally hardwired I/O systems
  • Reduces design engineering man-hours
  • Range of drive shaft options
  • Visual indication Beacon available in a choice of styles and colors

Specifications

Applications

  • Engineering Design
  • Integration
  • Start-Up Support
  • Training
  • Turnkey Installations

Approvals & Certifications

  • NAMUR VDI/VDE 3845
  • NEC 500

Bushing Material

  • Nylon
  • Oil Impregnated Bronze

Coil Voltage

  • 24 Vdc
  • 7.2 Vdc for Fieldbus

Communication

  • AS-Interface Version 2.1- 7700
  • DeviceNet - Intellis 7600
  • FOUNDATION Fieldbus - Intellis 7300
  • Modbus - Intellis 7500
  • Modbus Direct - Intellis 7400
  • PROFIBUS DP - Intellis 7200
  • Transmission Speed - Baud Rate: 125, 250, 500 Kbps - Intellis 7600 DeviceNet
  • Transmission Speed - Baud Rate: 167 Kbps - Intellis 7700 AS-interface Version 3.0
  • Transmission Speed - Baud Rate: 31.25 Kbps - Intellis 7300 FOUNDATION Fieldbus
  • Transmission Speed - Baud Rate: 9.6 Kbps - Intellis 7500 Modbus
  • Transmission Speed - Baud Rate: 9.6 to 12,000 Kbps - Intellis 7200 PROFIBUS
  • Transmission Speed - Baud Rate: 9.6, 19.2 Kbps - Intellis 7400 Modbus Direct

Conduit Connection

  • 1/2” NPT Female
  • 3/4” NPT Female

Consumption

  • Current Consumption Per Network Monitor: (2 In/2 Out) 11 mA (Power) - 59 mA (1 In/1 Out) - Intellis 7700 AS-interface Version 3.0
  • Current Consumption Per Network Monitor: 120 mA - Intellis 7200 PROFIBUS
  • Current Consumption Per Network Monitor: 18-24 mA IS - Intellis 7300 FOUNDATION Fieldbus
  • Current Consumption Per Network Monitor: 27 mA + 20-25 mA / Coil - Intellis 7400 Modbus Direct, Intellis 7500 Modbus
  • Current Consumption Per Network Monitor: 45 mA + 20-25 mA / Coil - Intellis 7600 DeviceNet

Distance

  • 1,600 feet (485 metres) Trunk + 512 feet (155 metres) Drop, Max.
  • 3,000 feet (909 metres) - Max.
  • 3,960 feet (1,200 metres) Trunk, Max.
  • 300 feet (90.9 metres) with Repeater, Max.
  • 6,720 feet (1,900 metres) Including Spurs, Max.
  • 900 feet (273 metres) with Repeater, Max.

Electrical Connectors

  • Junction Box

Enclosure Finish

  • Aluminum with Powder Coat Finish

Enclosure, Body Material

  • Aluminum
  • Engineered Polyamide Resin
  • Falcon V Valve Body: 316 Stainless Steel
  • Falcon V Valve Body: Brass

Environmental Protection

  • Explosion-proof Class I, Div. 1, Groups C & D, Class II, & III, Div. 2, Groups E, F, G
  • Intrinsically Safe Class I, Div. 1, Groups A, B, C & D, Class I, None 0, IIC, Class I, Div. 2, Groups A, B, C & D, Class II, & III, Div. 2
  • IP66
  • NEMA 4
  • NEMA 4X
  • Non-Incendive Class I, Div. 2, Groups A, B, C & D, Class II, & III, Div. 2, Groups F & G

Materials of Construction

  • Beacon Visual Indicator: Co-Polyester
  • Hardware: Stainless Steel

NPT Connection

  • 1/4” NPT Female

Override

  • Locking
  • Momentary

Shaft Material

  • Stainless Steel
