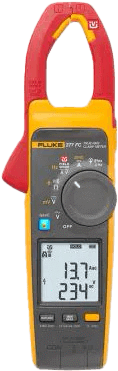

Fluke 377/378 FC Non-Contact Voltage True-rms AC/DC Clamp Meter with iFlex
Brand: Fluke CorporationThe Fluke 377/378 FC true-rms clamp meter uses FieldSense™ technology to make testing faster and safer, all without contacting a live conductor.
You get accurate voltage and current measurements through the clamp jaw.
Simply clip the black test lead to any electrical ground, put the clamp jaw around the conductor and see reliable, accurate voltage and current values on the display.
Your job will get easier when you use the 377 FC clamp meter. The display turns green when a stable FieldSense measurement is detected. Visual Continuity also provides a bright green screen for easy detection of continuity in noisy work areas.
Features- Measure voltage and current with your clamp jaw
- Faster, safer testing - all without touching a live wire - using FieldSense™ technology
- Complete 3-phase voltage and current tests in 3 quick steps
Specifications
Brand
AC Current: Jaw
- Range: 999.9 A
- Resolution: 0.1 A
- Accuracy: 2 % ± 5-digits
AC Current: Flexible Current Probe
- Range: 2500 A
- Resolution: 1 A (≤ 2500 A), 0.1 A (≤ 999.9 A)
- Accuracy: 3 % ± 5-digits
DC Current
- Range: 999.9 A
- Resolution: 0.1 A
- Accuracy: 2 % ± 5-digits
AC Voltage: Field Sense
- Range: 1000 V
- Resolution: 1 V (≤ 1000 V)
- Accuracy: ≤ 4/0 AWG 3 % ± 5-digits (45 Hz to 66 Hz)
AC Voltage: Test Leads
- Range: 600.0 V to 1000 V
- Resolution: 0.1 V (≤ 600.0 V), 1 V (≤ 1000 V)
- Accuracy: 1 % ± 5-digits
DC Voltage
- Range: 600.0 V to 1000 V
- Resolution: 0.1 V (≤ 600.0 V), 1 V (≤ 1000 V)
- Accuracy: 1 % ± 5-digits
mV dc
- Range: 500.0 mV
- Resolution: 0.1 mV
- Accuracy: 1 % ± 5-digits
Amps Frequency: Jaw
- Range: 45 Hz to 66 Hz
- Resolution: 0.1 Hz
- Accuracy: 0.5 % ± 5-digits
Amps Frequency: Flexible Current Probe
- Range 5.0 Hz to 500.0 Hz:
- Resolution: 0.1 Hz
- Accuracy: 0.5 % ± 5-digits
Capacitance
- Range: 1000 μF
- Resolution: 0.1 μF (≤ 100.0 μF), 1 μF (≤ 1000 μF)
- Accuracy: 1 % ± 4-digits
Operating Temperature
- -10° to 50° C
Operating Humidity
- ≤ 90 % RH (10° to 30° C)
- ≤ 75 % RH (at 30° to 40° C)
- ≤ 45 % RH (40° to 50° C)
Ingress Protection
- IEC 60529: IP30
Safety
- IEC 61010-1: Pollution Degree 2
- IEC 61010-2-032: CAT III 1000 V / CAT IV 600 V
- IEC 61010-2-033: CAT III 1000 V / CAT IV 600 V
- IEC 61557-13: Class 2, ≤ 30 A/m
